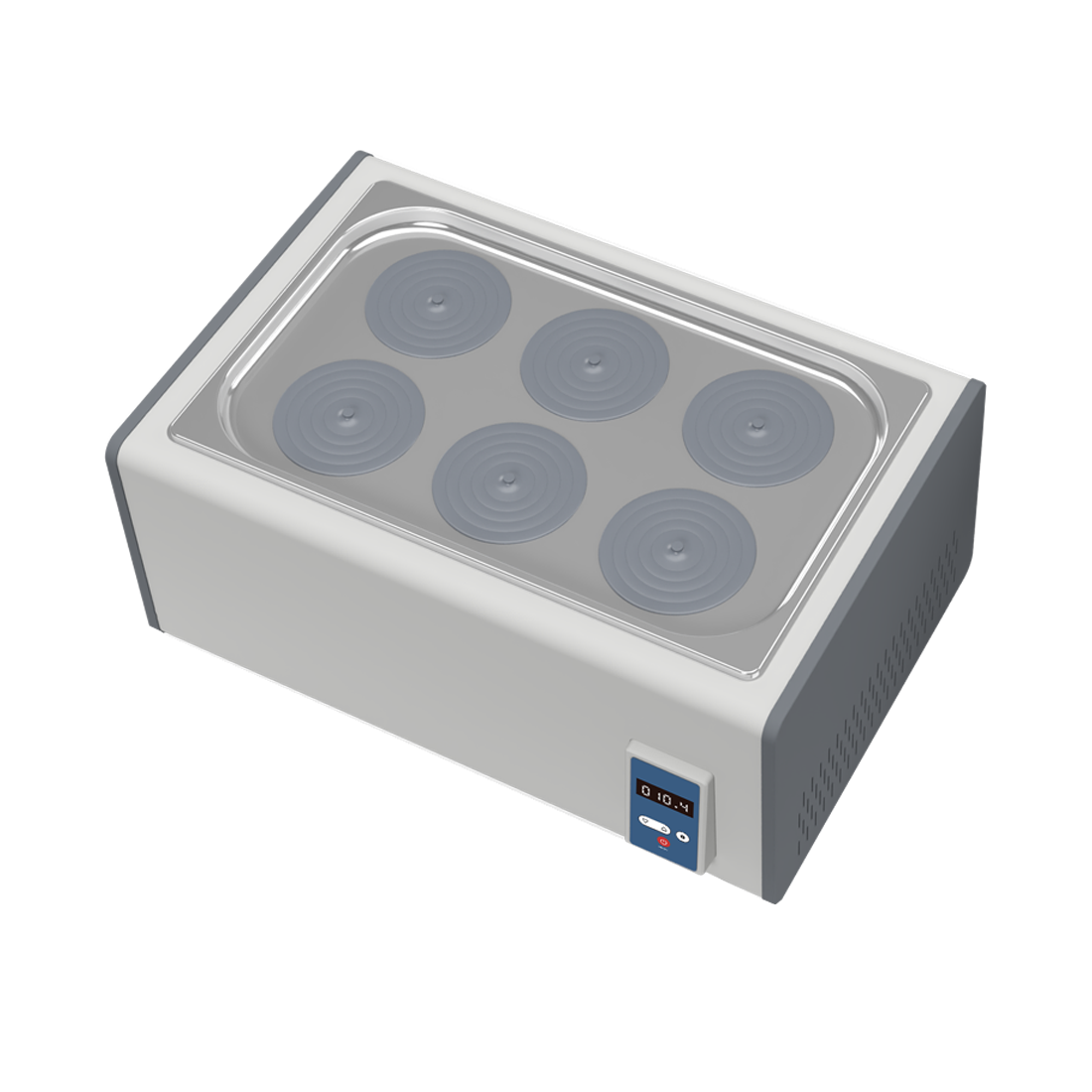

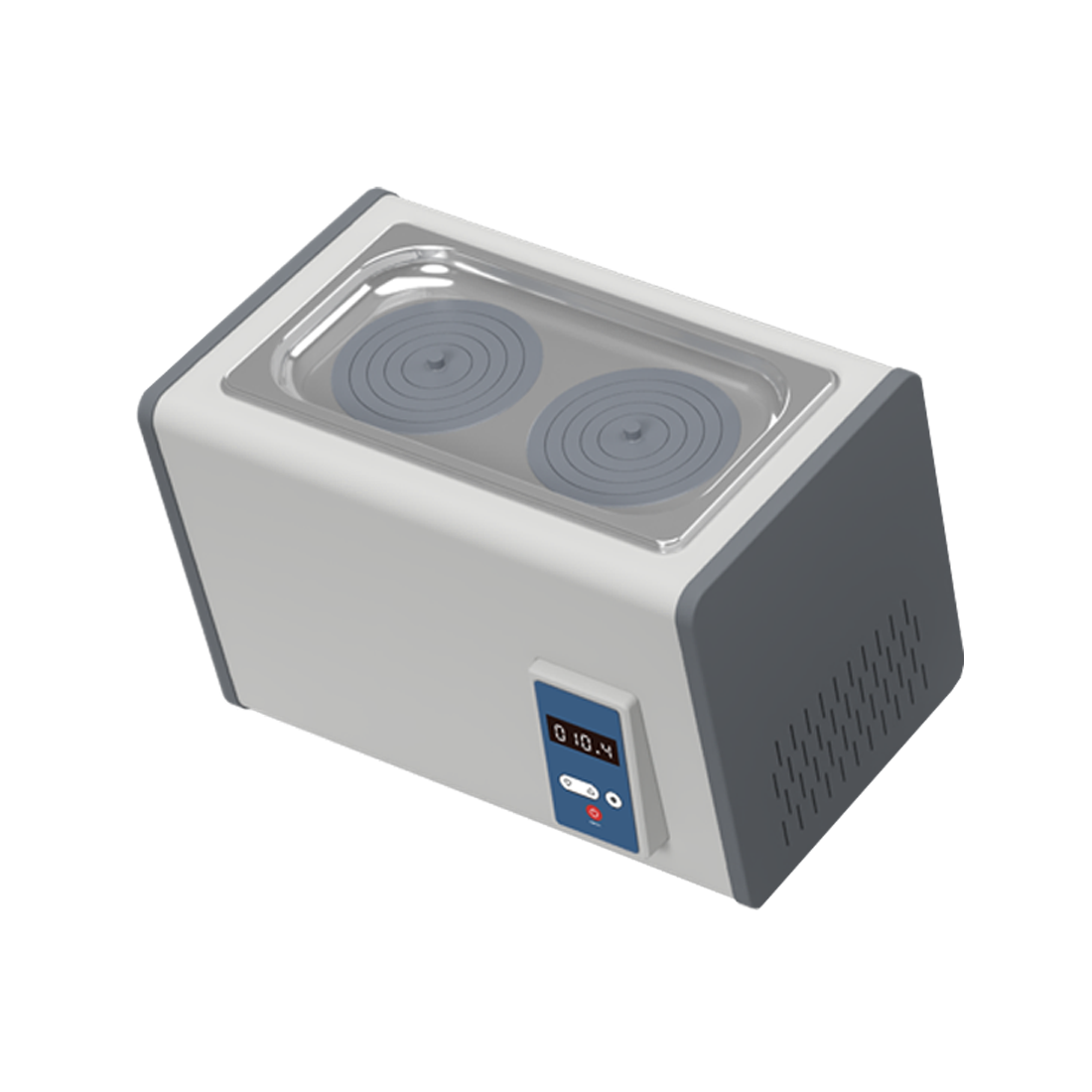

Specification

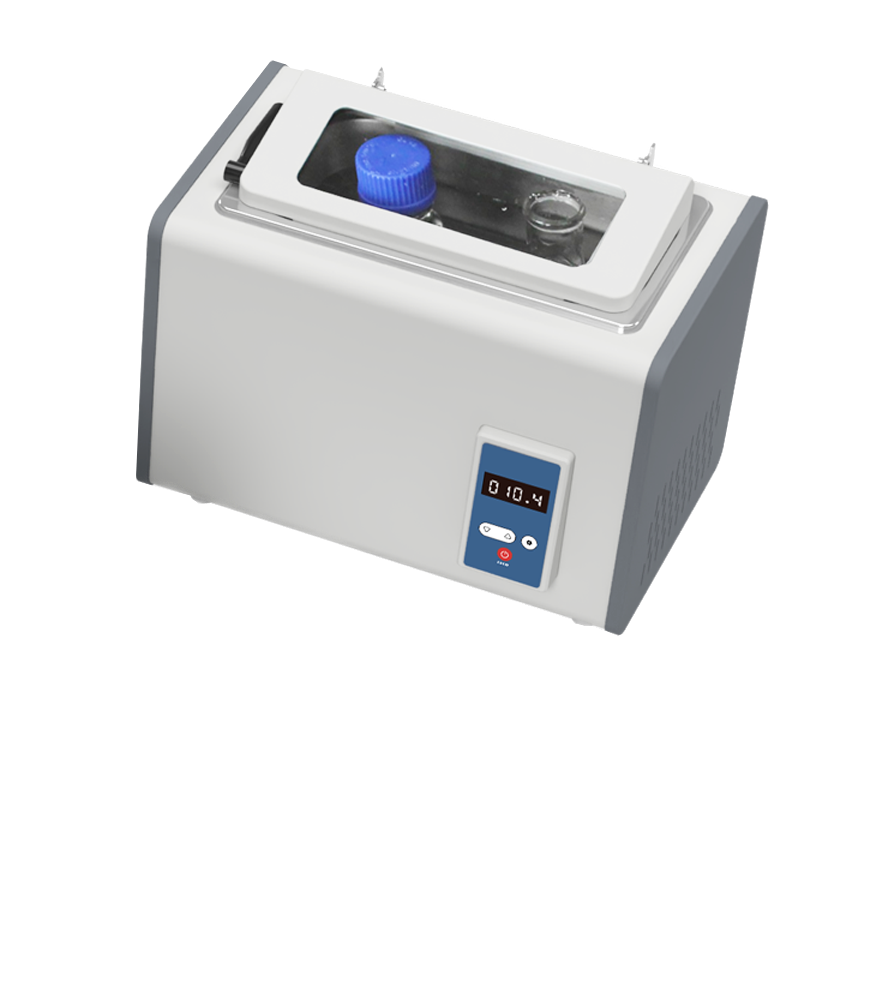

-The upper cover is designed with glass window design, real-time observation;

-Intelligent PID algorithm, microcomputer temperature control accuracy with ±0.5­°C;

-Stable and reliable operation;

-The shell of the whole machine is electrostatically sprayed to prevent rust, corrosion and static electricity;

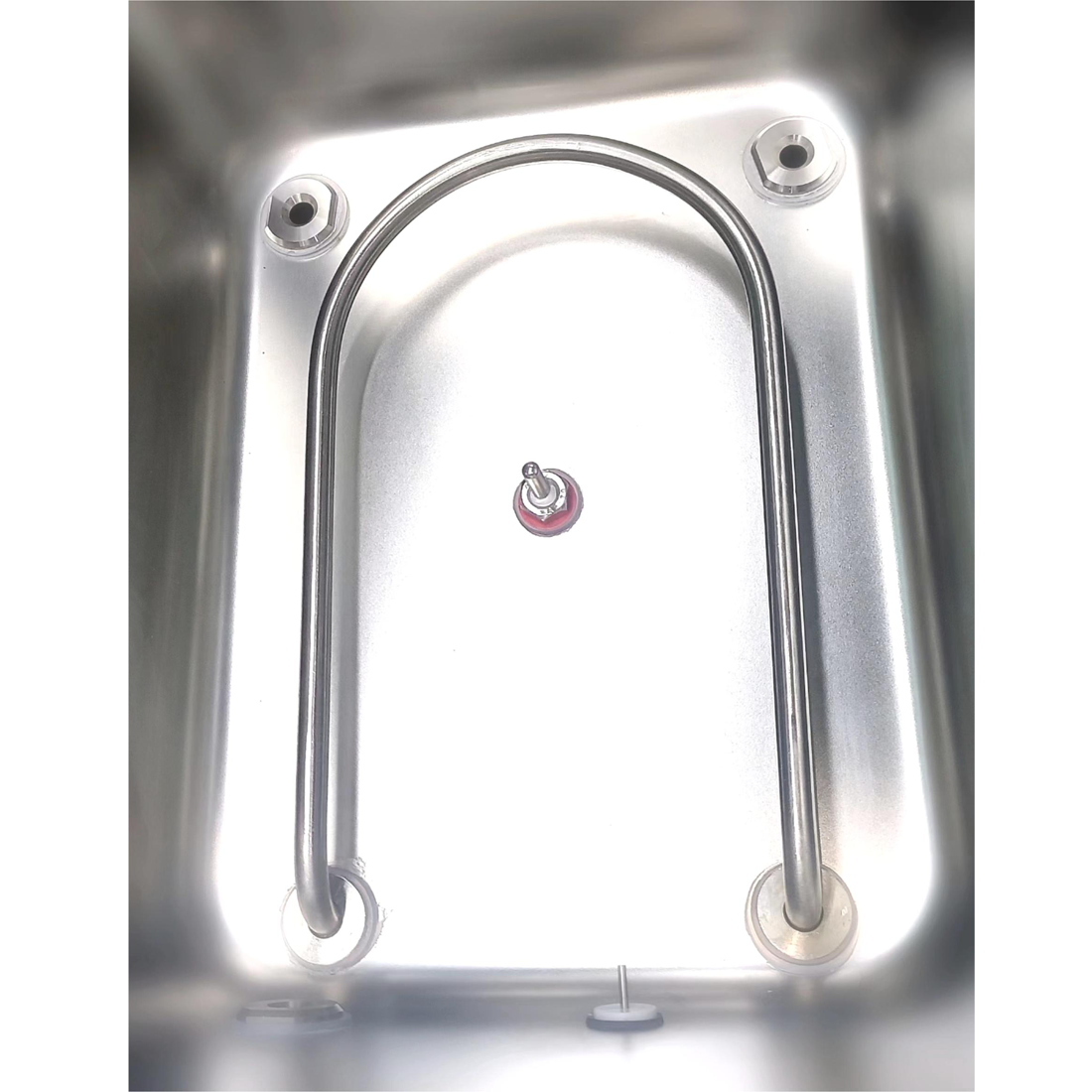

-The one-piece 304 stainless steel liner has strong corrosion resistance.

ModelWB1002WB1002SWB1005WB2010WB2020WB2028
Circulating pump///YesYesYes
Capacity2L2L shallow5L10L20L28L
Inner tank size
150*135*150mm300*150*65mm300*150*150mm300*235*150mm495*300*150mm495*300*200mm
Heating power250W600W600W1000W1500W1500W
Total power260W610W650W1050W1550W1550W
Temp control rangeRoom temp +5~100°C

Temp rise time

Room temp -95°C

30min30min40min30min30min40min
Temp display resolution0.1°C
Temp uniformity≤±0.3℃(@37℃)≤±0.1℃(@37℃)
Temp stability≤±0.5℃(@37℃)≤±0.2℃(@37℃)
Temp sensorPT1000
Time setting
1min-99h59min/∞
Voltage
200-240VAC/100-120VAC 50/60Hz

Machine dimension315*237*285mm462*242*268mm462*342*268mm465*332*287mm682*390*322mm678*390*350mm
Weight4kg4kg6.5kg10kg13kg15kg
