Visible Circulating Thermostatic Water Bath WB series

The digital thermostat water bath uses PID control algorithm, to monitor the water temperature through an intelligent temperature sensor to achieve precise temperature control. The unique gable lid design with glass window has a backflow function and can be observed in real time. lt is widely used in water bath temperature control in petroleum, chemical industry, medicine, biochemistry, metrology, light industry, scientific research andother fields.

Enquiry now

Specification

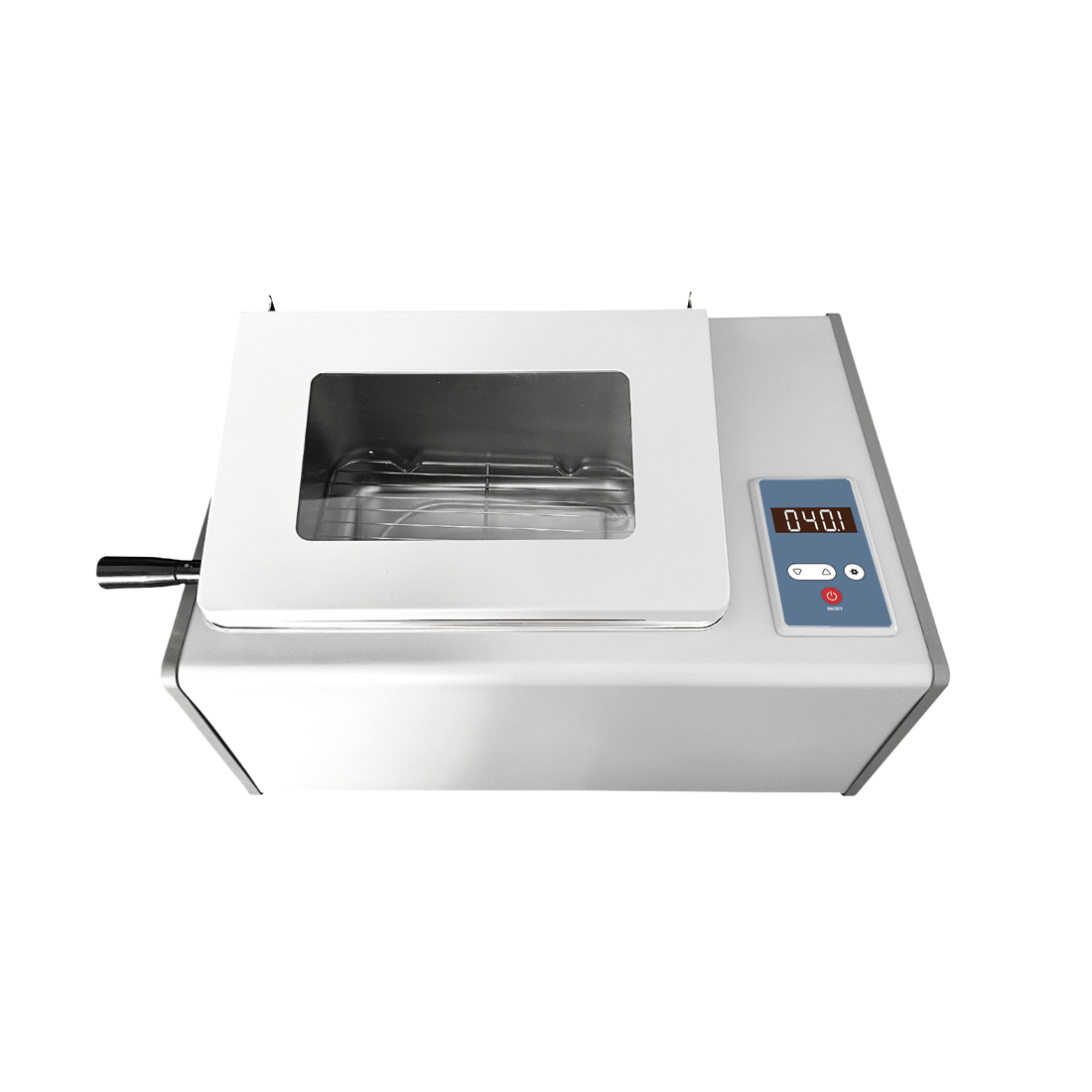

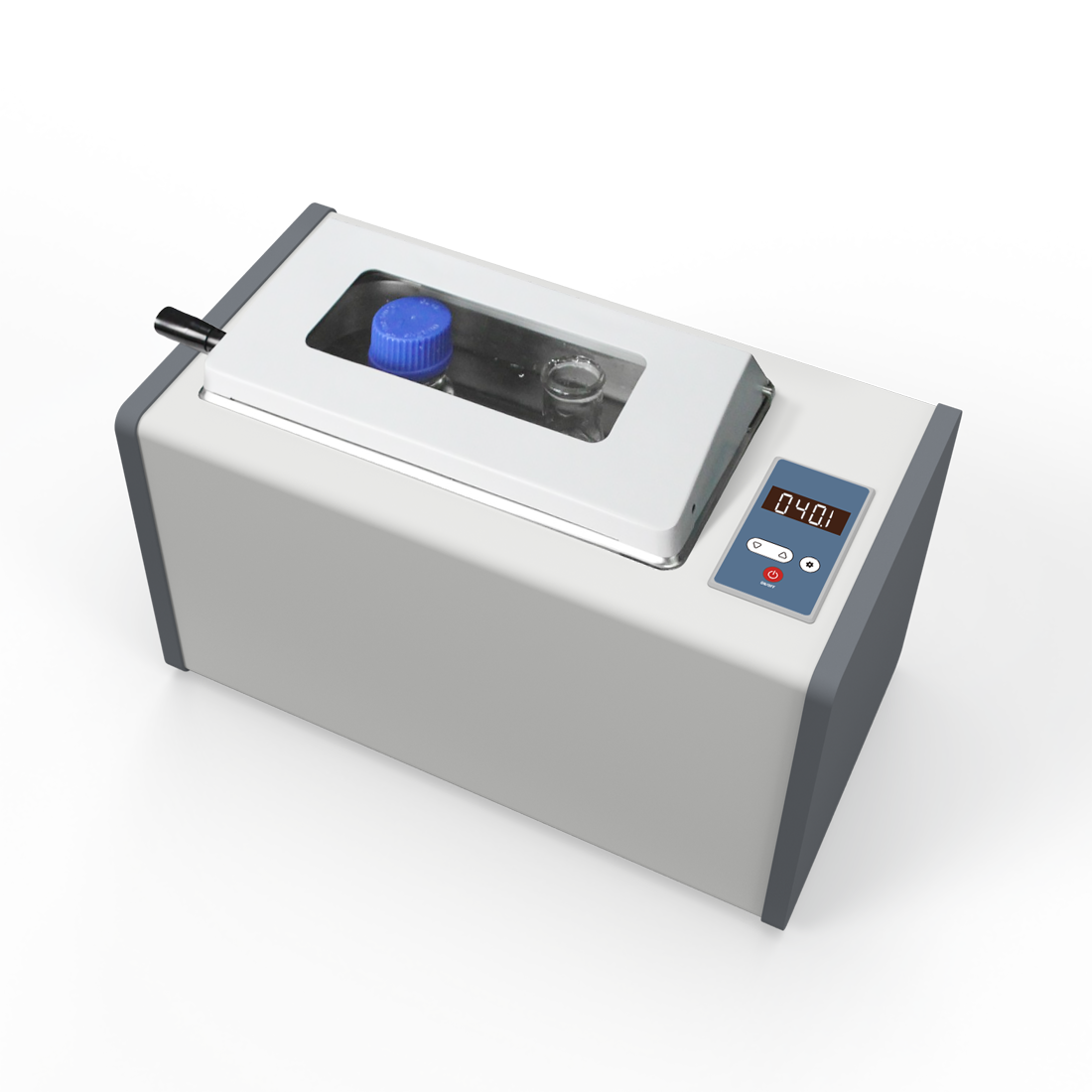

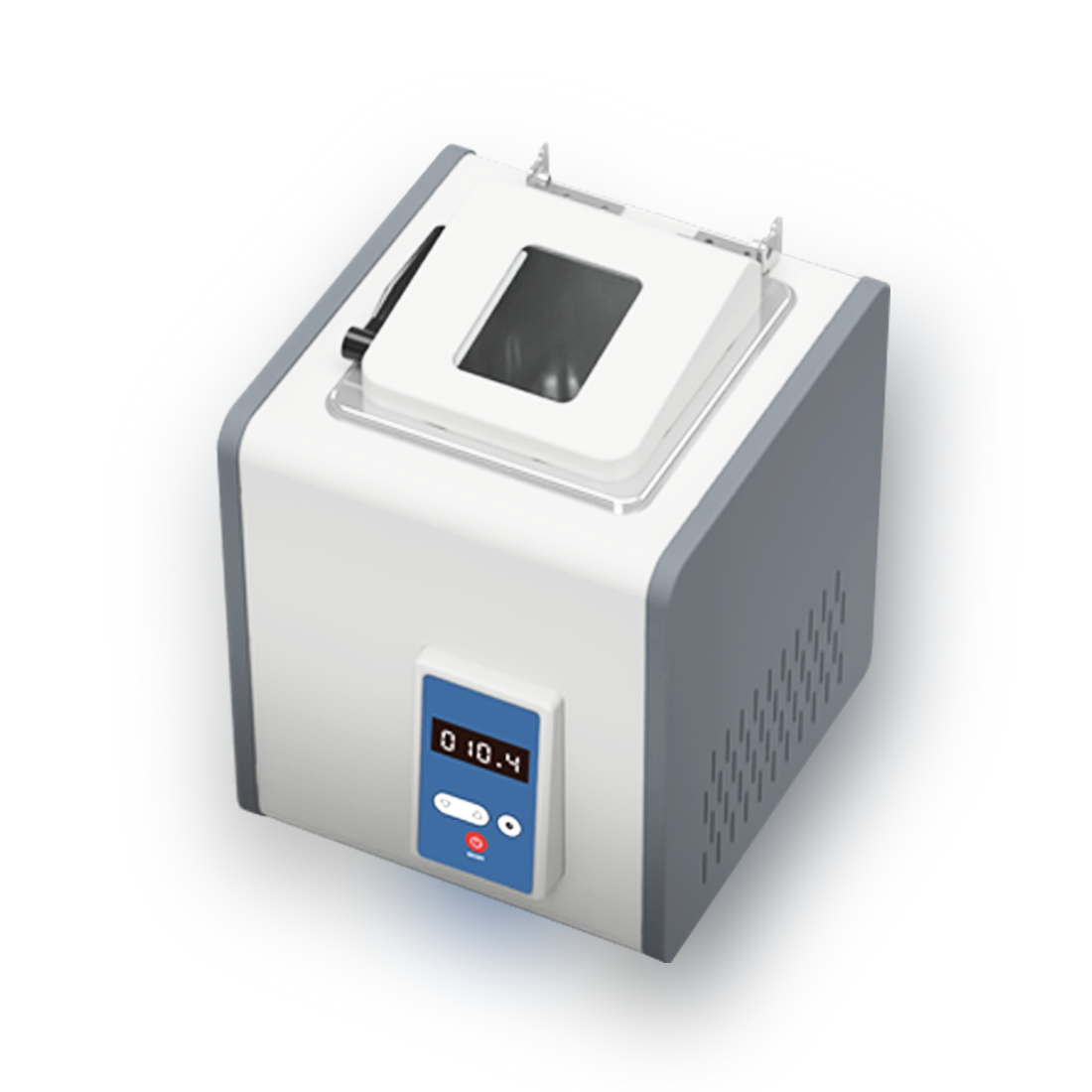

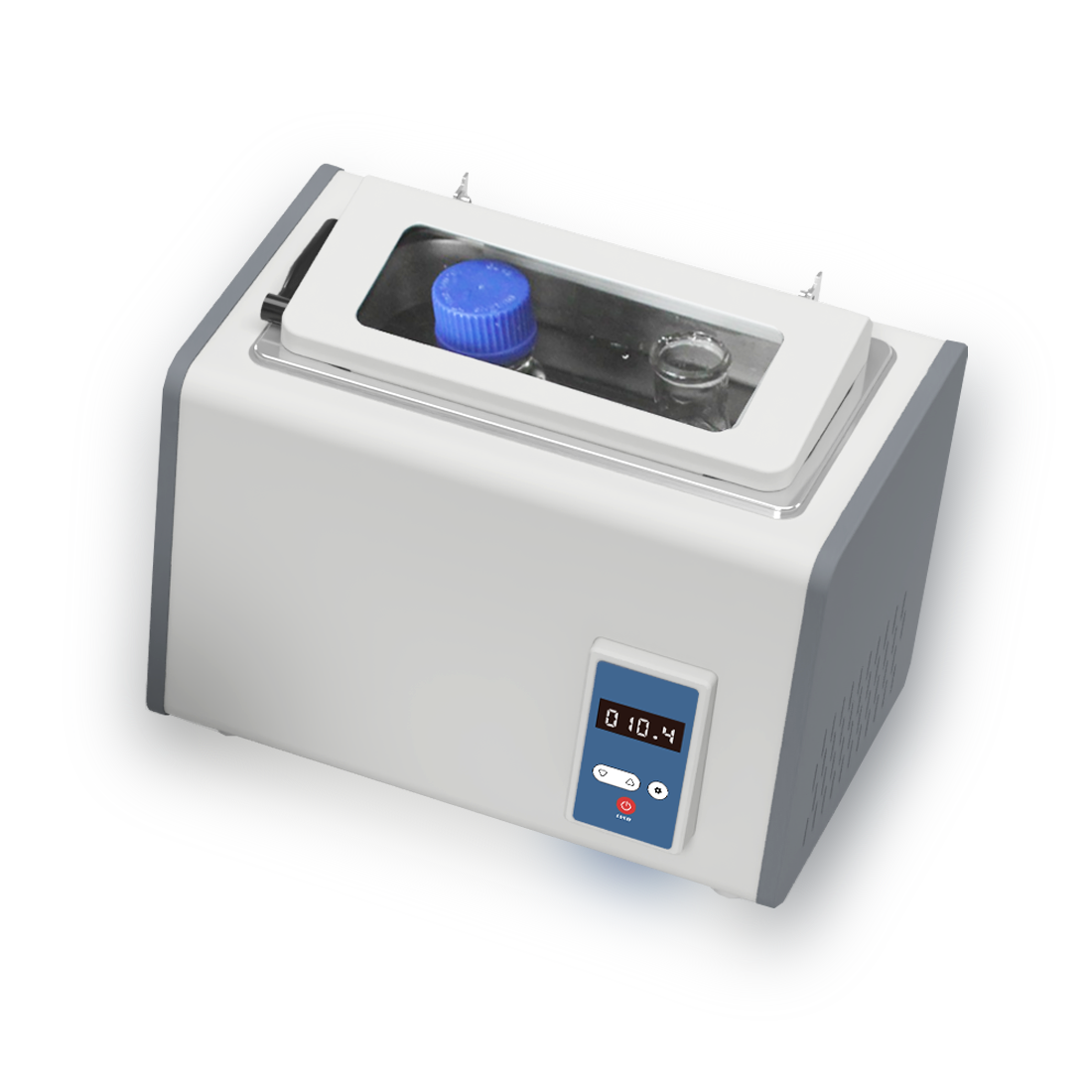

- Unique gable lid with reflow function and visible window design for real-time observation;

- Optional circulation pump makes heating more even and temperature control more precise;

- Temperature can be set freely, with timing function;

- Built-in alarm system to prevent dry burning;

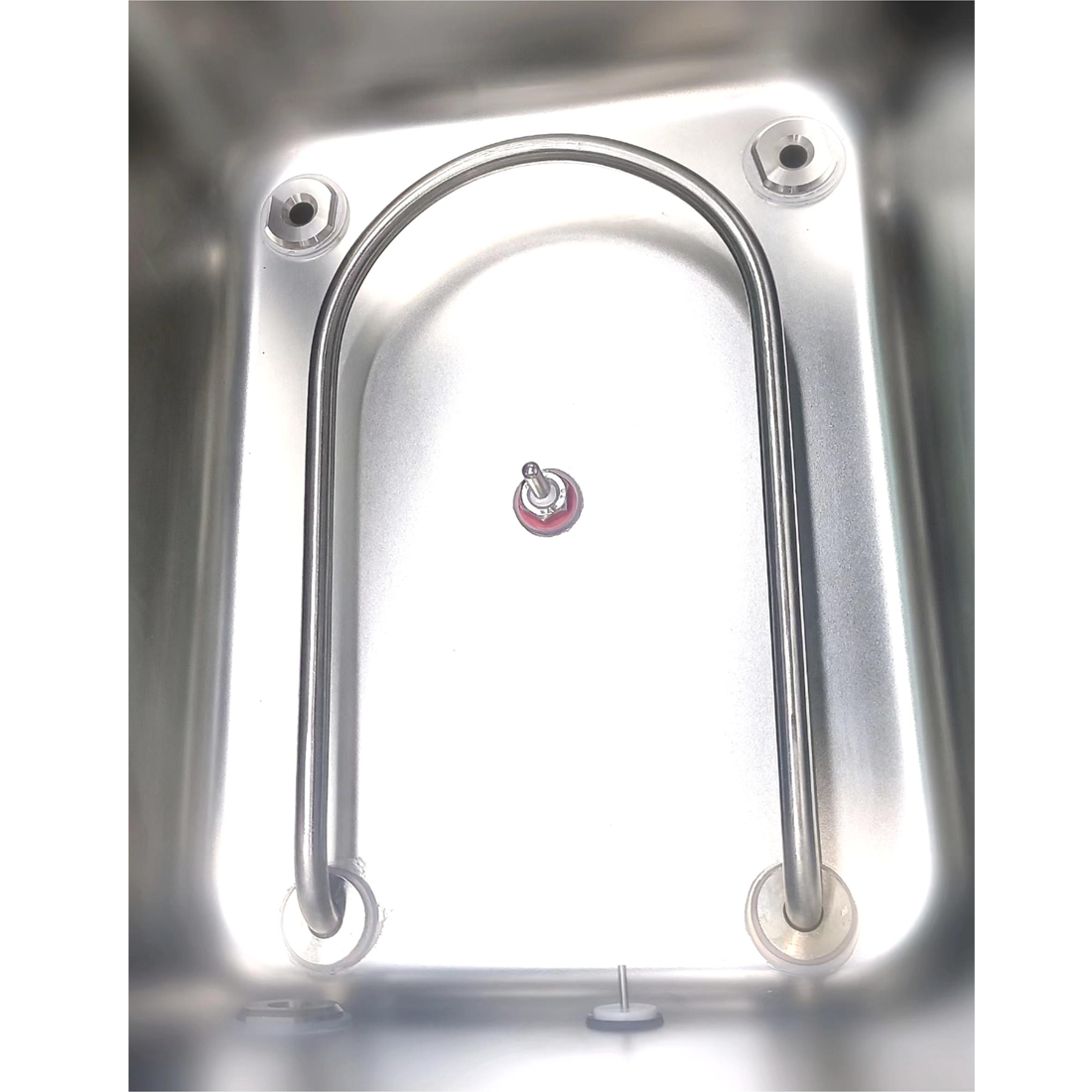

- Adopts one-shaped moulding stainless steel liner,resistant to high temperature, corrosion and rust.

Model	Combination	Capacity	Liner dimension (L×W×Hmm)	Power	Temp control	Constant temp volatility	Time range	Temp set range
WB1002	Gable lid Visible Without circulation pump	2L	150×130×150	260W	RT~100℃	±0.5℃	1min~24h	10~100℃
WB1005	Gable lid Visible Without circulation pump	5L	300×150×150	650W		±0.5℃
WB2010	Gable lid Visible With circulation pump	10L	300×300×150	1050W		±0.3℃
WB2020		20L	300×500×150	1550W
WB2028		28L	300×500×200	1550W
