Specification

- 5-inch color touch screen with android system, friendly user interface;

Quickly and accurately quantify DNA, RNA and proteins in 3 seconds;

High sensitivity, the lowest detection limit can reach 0.5pg/μl;

With dual-color fluorescence channels for quantification of nucleic acids and proteins, measuring two different fluorescences in one analysis;

Compatible with common reagents on the market;

Can store more than 100,000 sample results and output data through USB port;

High quantitative measurement accuracy can be achieved with only 1~20ul sample;

Support multiple operating languages;

5 orders of magnitude linear dynamic range.

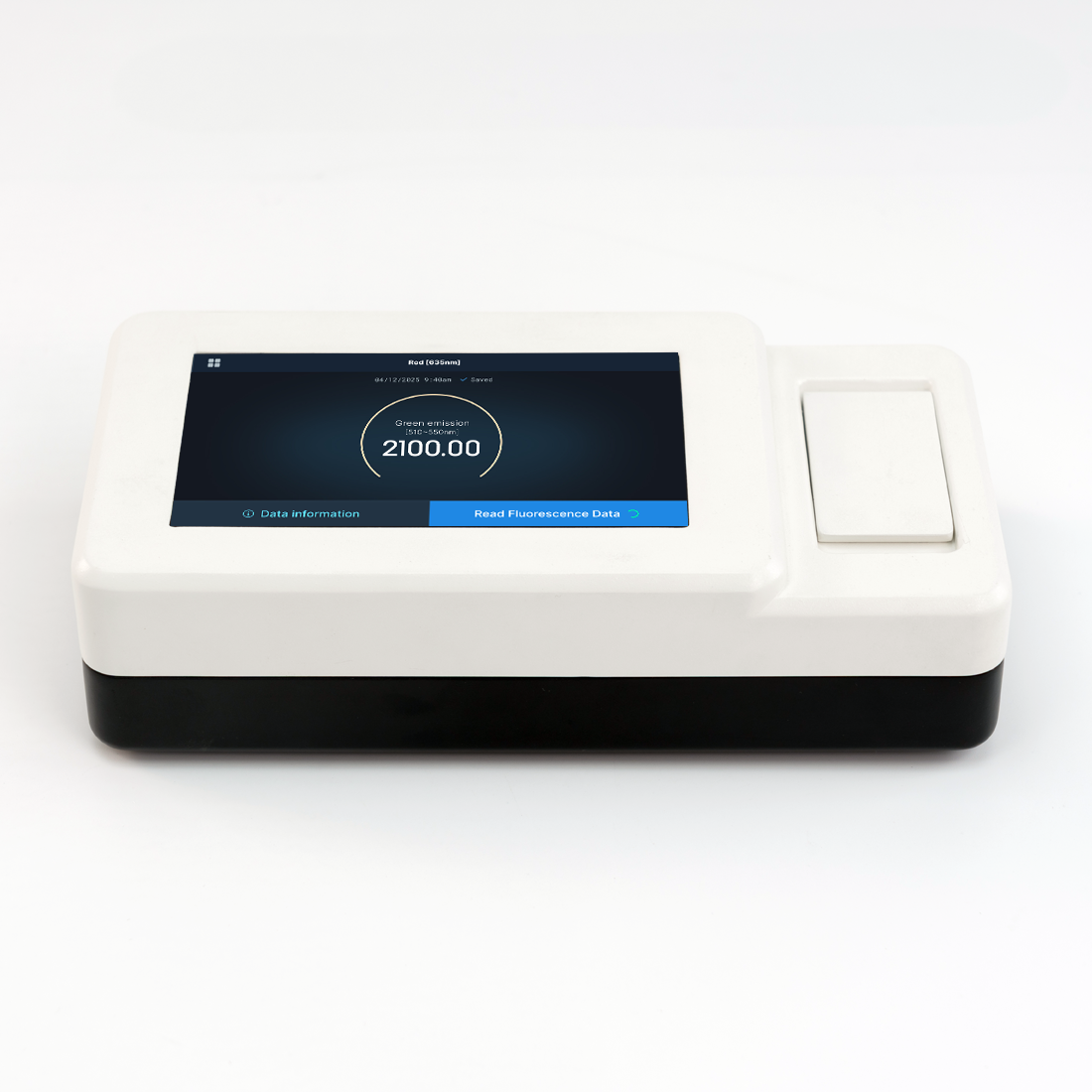

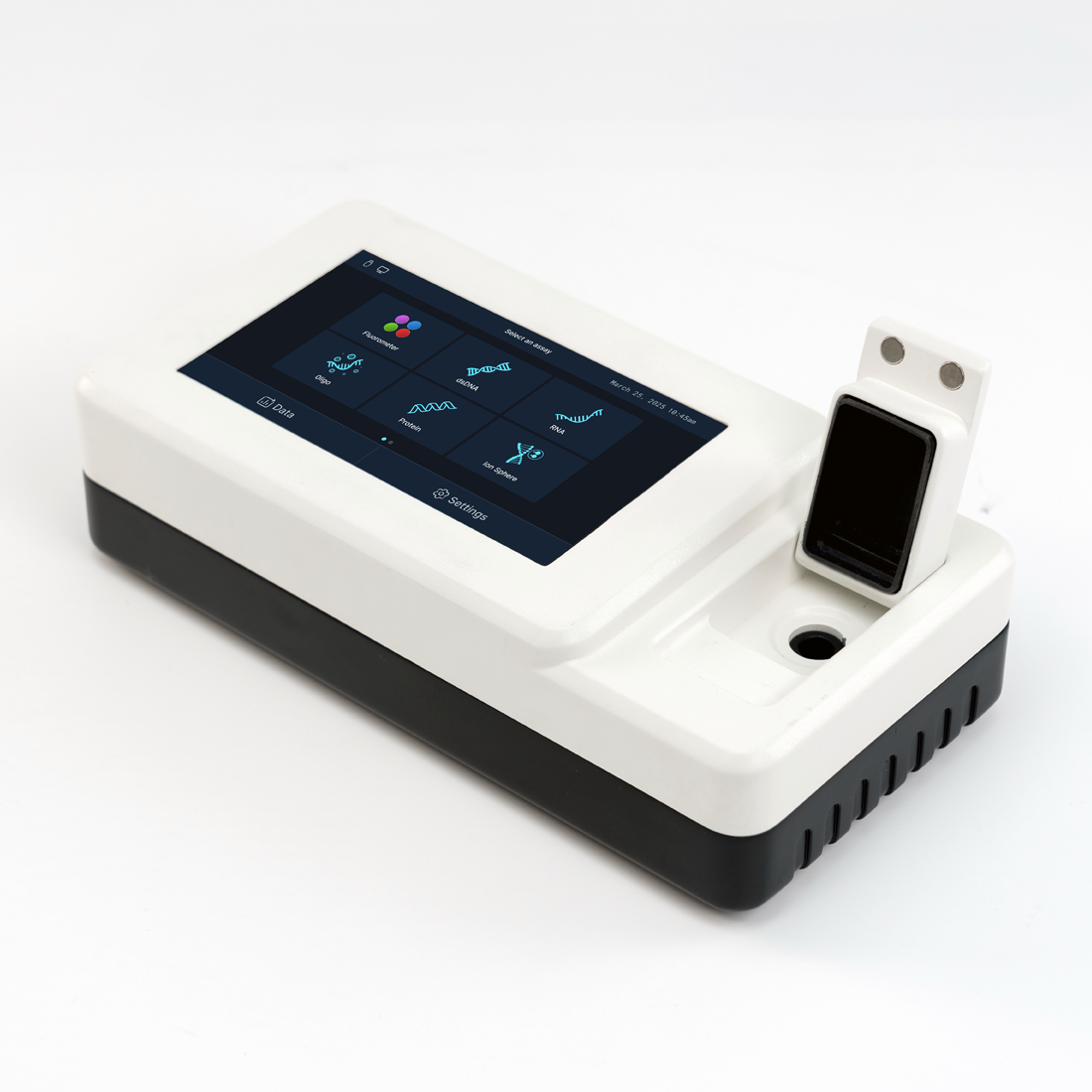

Model

FM201
Sample throughput1

Sample tube

0.5 ml PCR tube (thin-walled tube)

Display

5-inch color touch screen

Data output

USB/Wifi

Light source

LED light emitting diode

Excitation filter

Blue 460~480nm Red 630~650nm

Emission filter

Green 500~535nm Red 670~710nm

Sample volume

1~20μl

Processing speed

3s

Dimension

L200xW100xH54mm

Weight

0.43kg

Power supply

100~240V;50/60Hz
