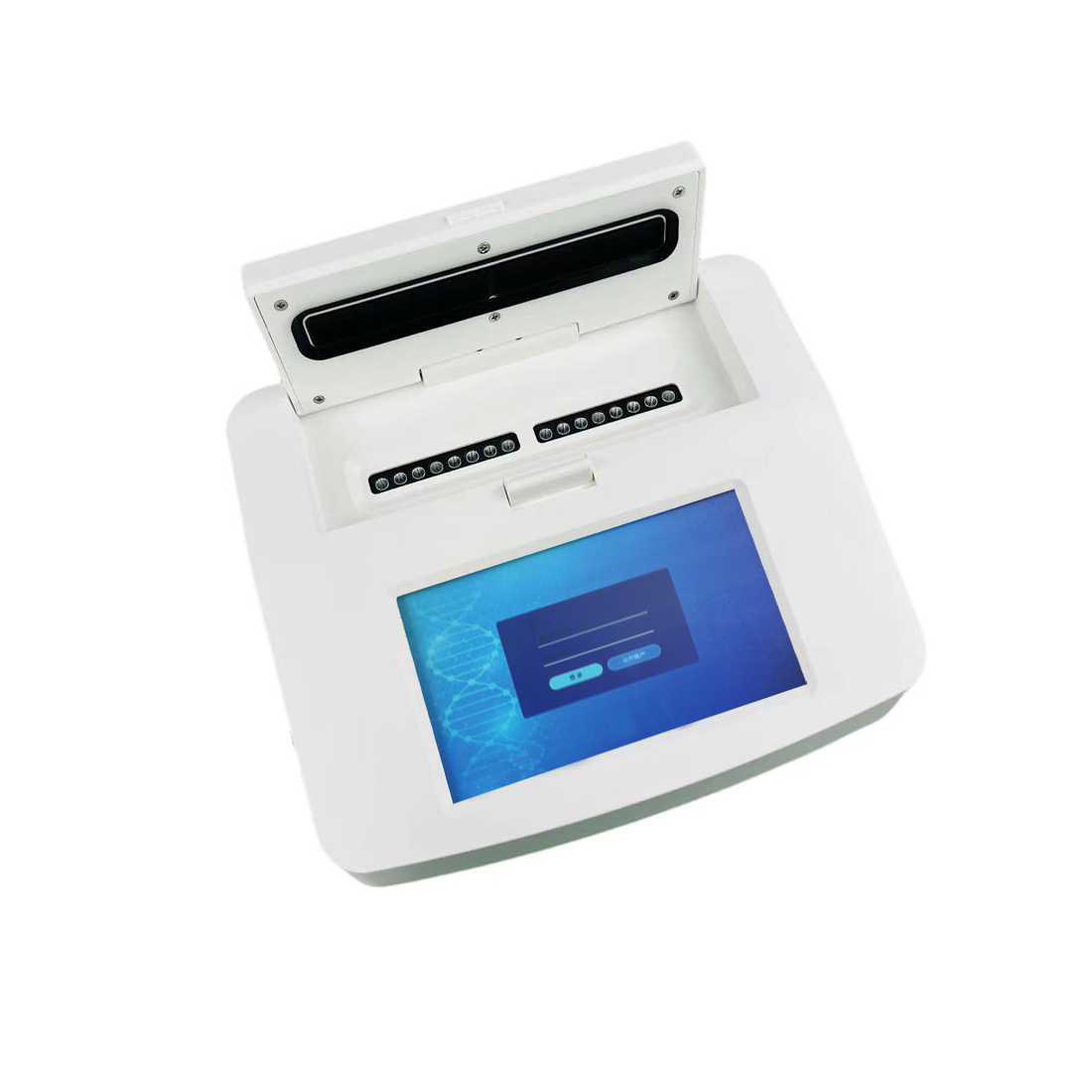

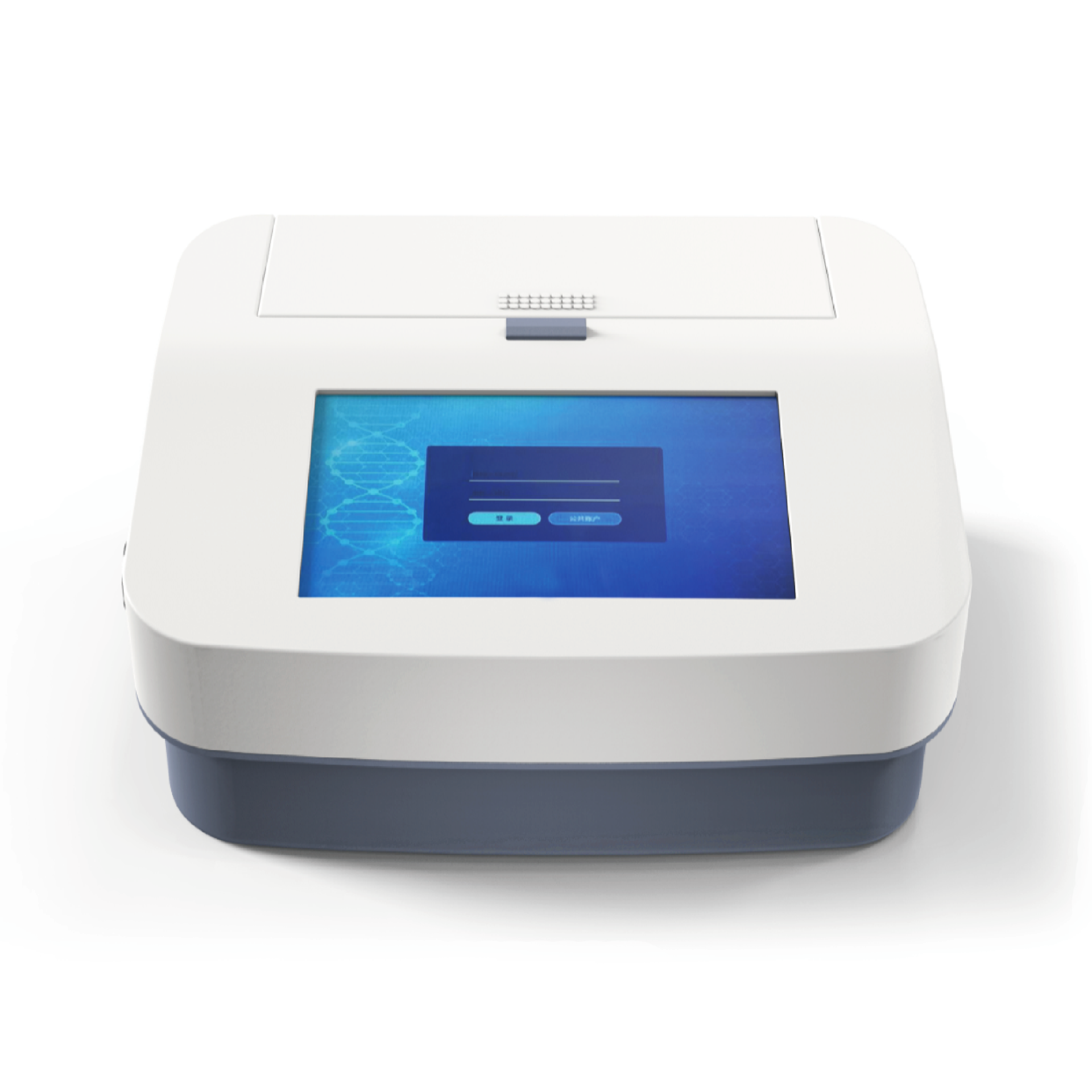

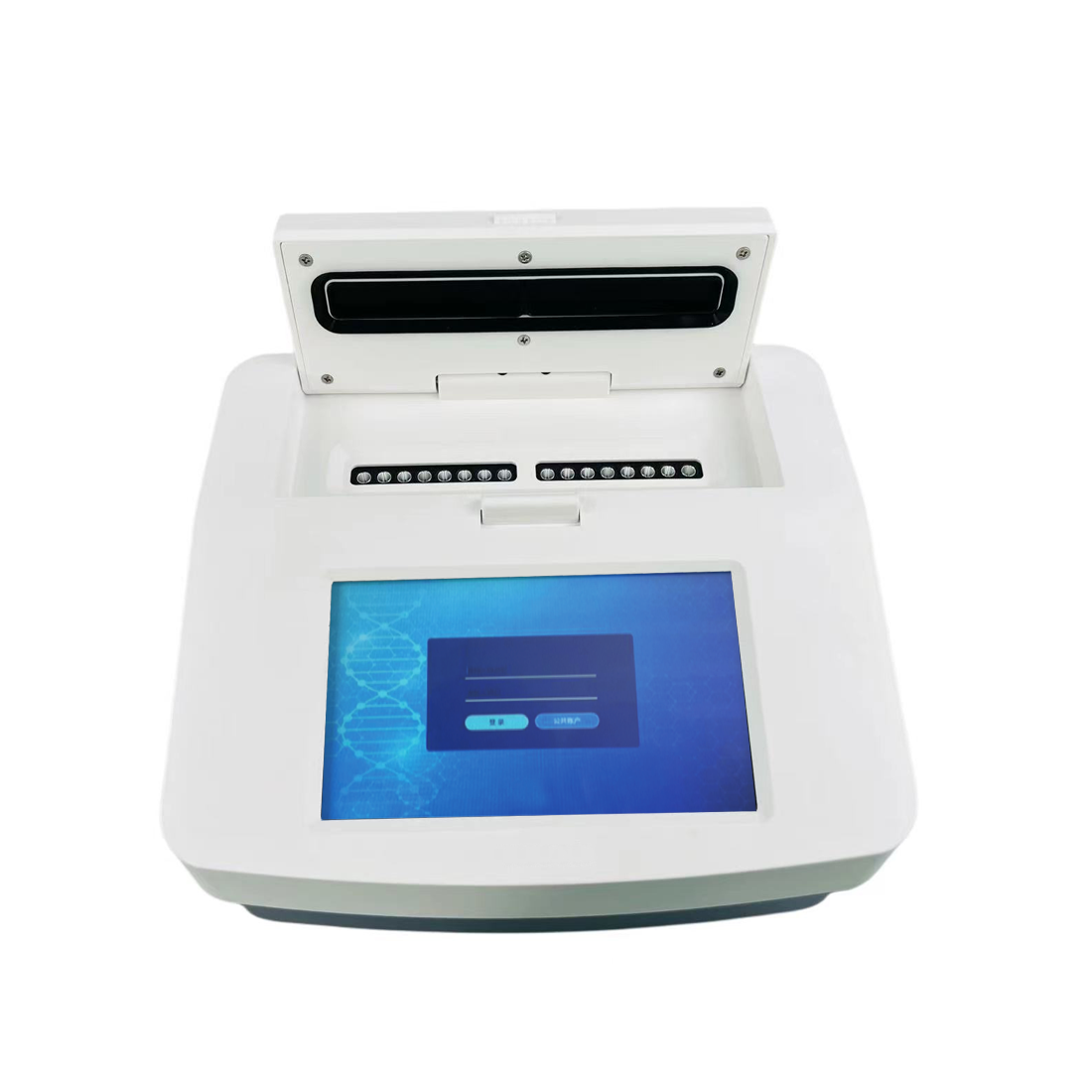

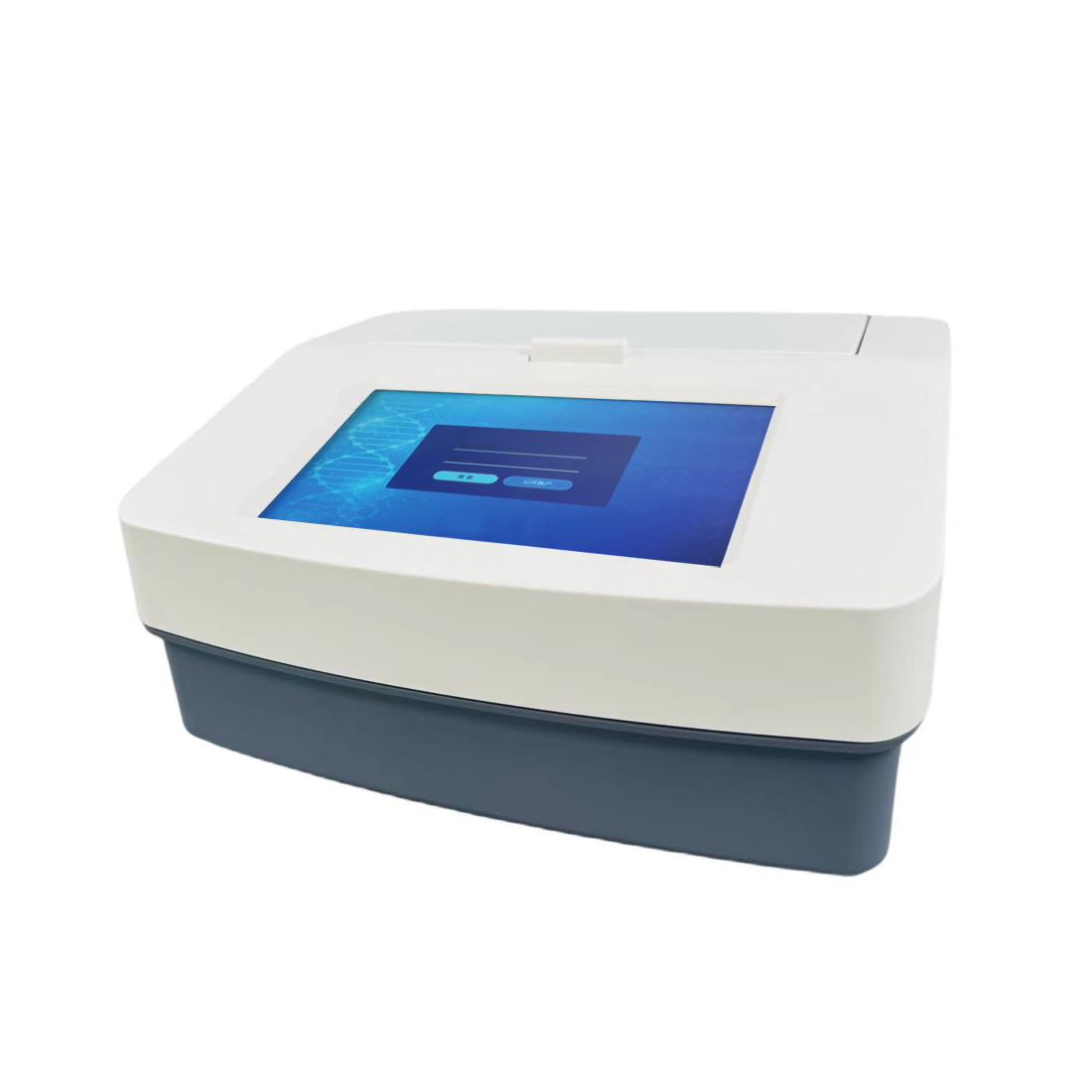

Quantitative Real-time PCR-16-wells QP16C2/QP16C4

Can detect 16 samples at the same time, and the standard configuration is FAM/SYBR , VIC two-color fluorescence channels. Lightweight & compact and supports stand-alone operations. Adopts innovative liquid cycle refrigeration technology combined with peltier temperature control technology to achieve rapid heating and cooling. lt offers CT value analysis, absolute quantitative analysis, supports isothermal amplification and end point analysis.

Enquiry now

Specification

- Stand-alone use, compact design, easy to carry ;

- Humanized software design, simple operation ;

- Sensitive and efficient light signal detection system, with no crosstalk in multi-channel fluorescence and good sample detection stability;

- Two-channel or four-channel fluorescence detection systems optional, can achieve multiple fluorescence - quantitative detection;

- Advanced semiconductor heating technology, fast heating and cooling, short detection time ;

- 32G data memory, excel format or pictures can be kept through U disk, easy management.

Model	QP16C2	QP16C4
Sample capacity	16×0.2mL PCR tube/2×0.2mL strip tube
Reaction volume	10~50μL
Display	7-inch color touch screen
Thermal cycling	Peltier
Max temp change rate	6°C/s
Block Temp control range	10~100°C
Hot lid temp control range	30~105°C
Temp accuracy	±0.2°C
Temp uniformity	±0.2°C@60°C ±0.3°C@95°C
Excitation light source	LED
Detection module	MPPC
Detection mode	Linear individually scan
Fluorescence channel	FAM/SYBR,VIC/HEX/TET	FAM/SYBR,VIC/HEX/TET,ROX,CY5/TAMRA
Sensitivity	Single copy gene
Dynamic range	10 orders of magnitude copies
Analysis mode	CT value /absolute quantitative analysis
Dimension	L225×W270×H132mm
Weight	4kg
Voltage/Frequency	100~240V;50/60Hz
