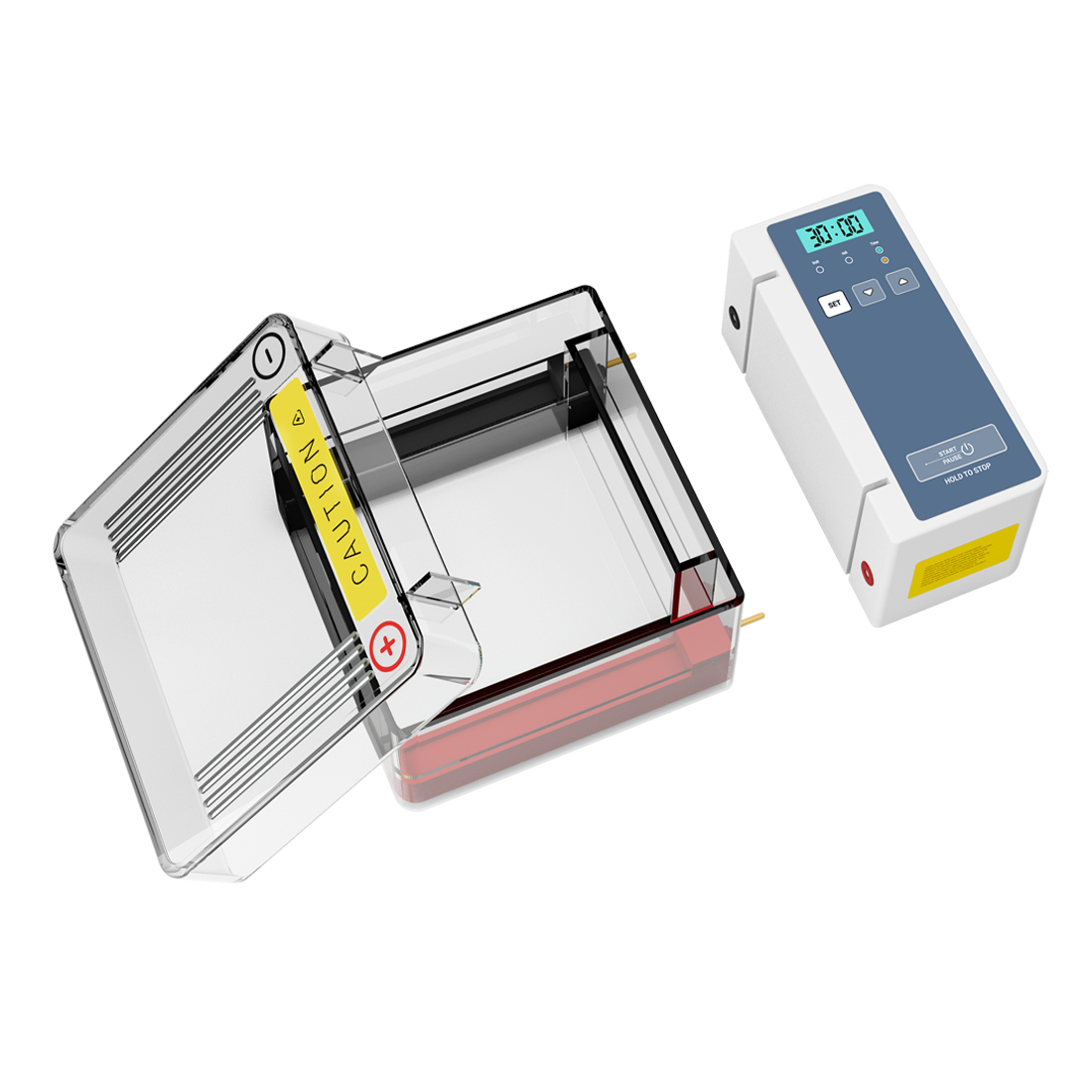

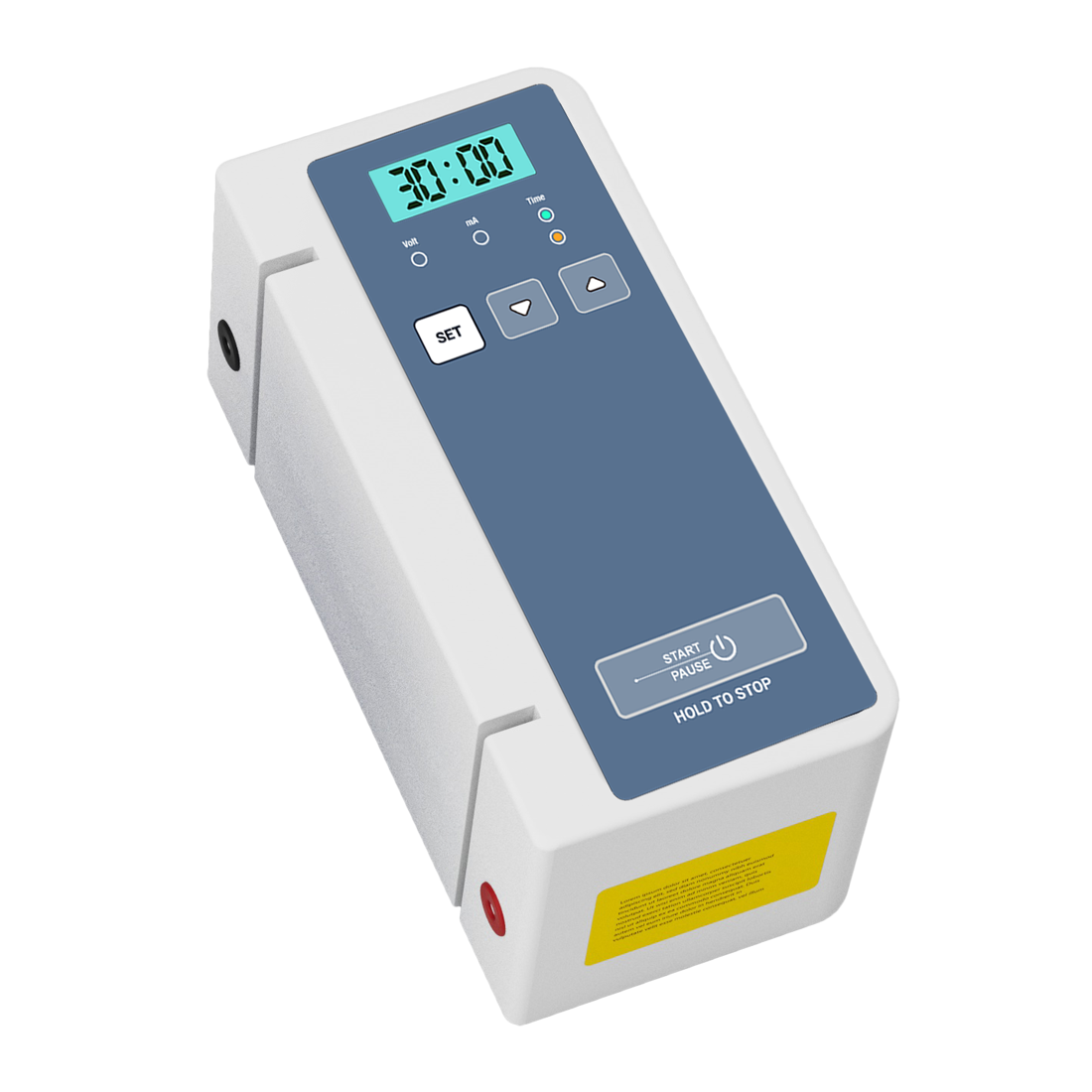

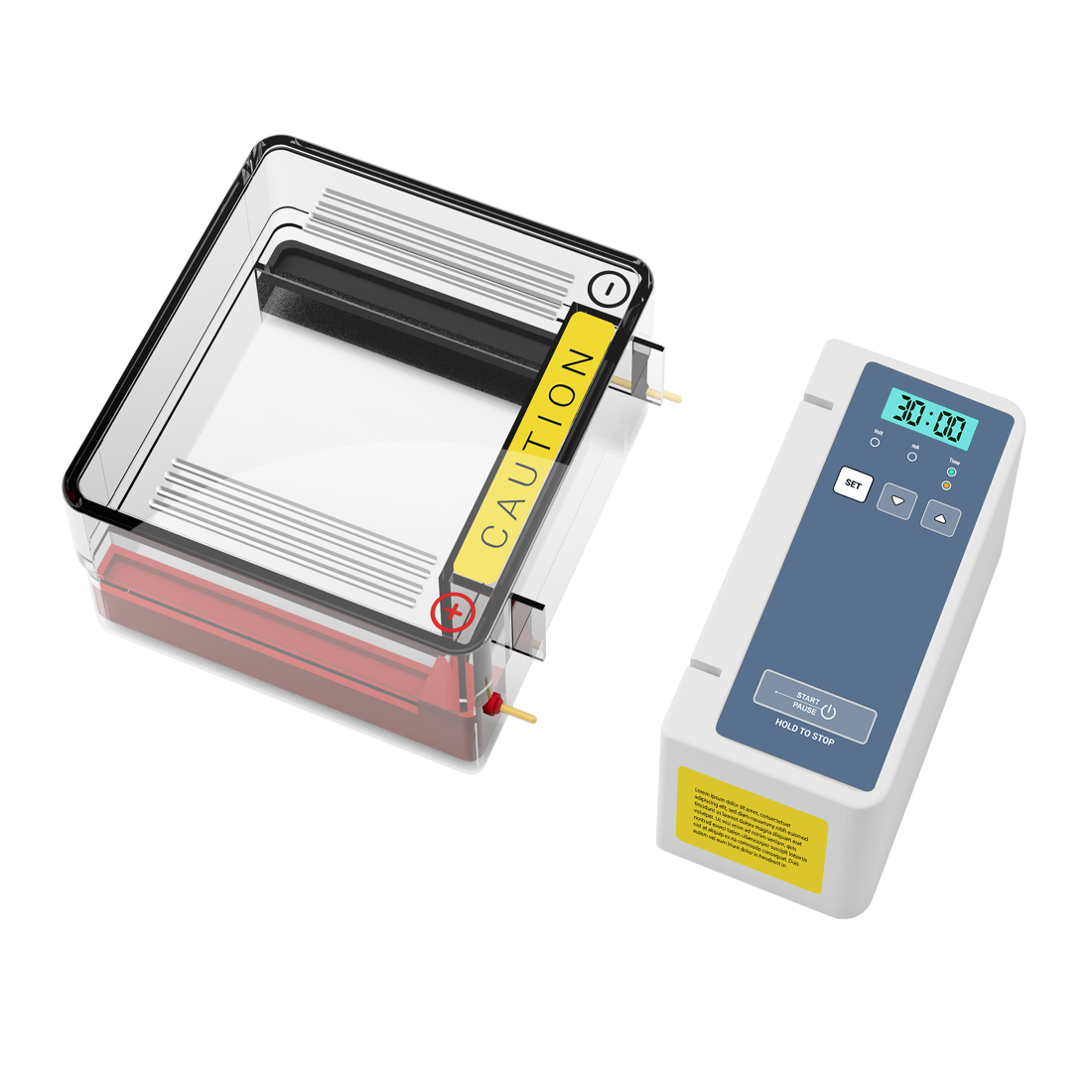

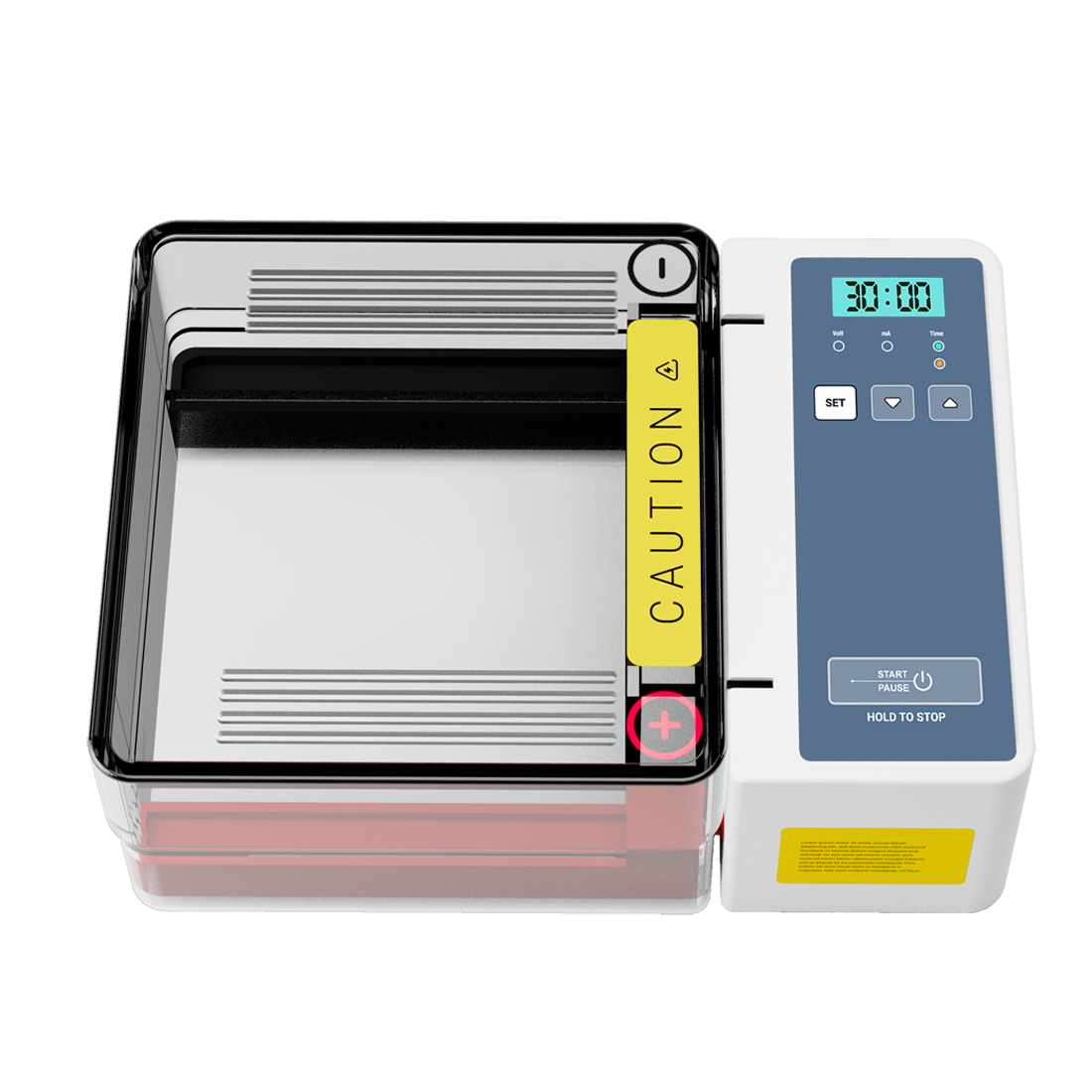

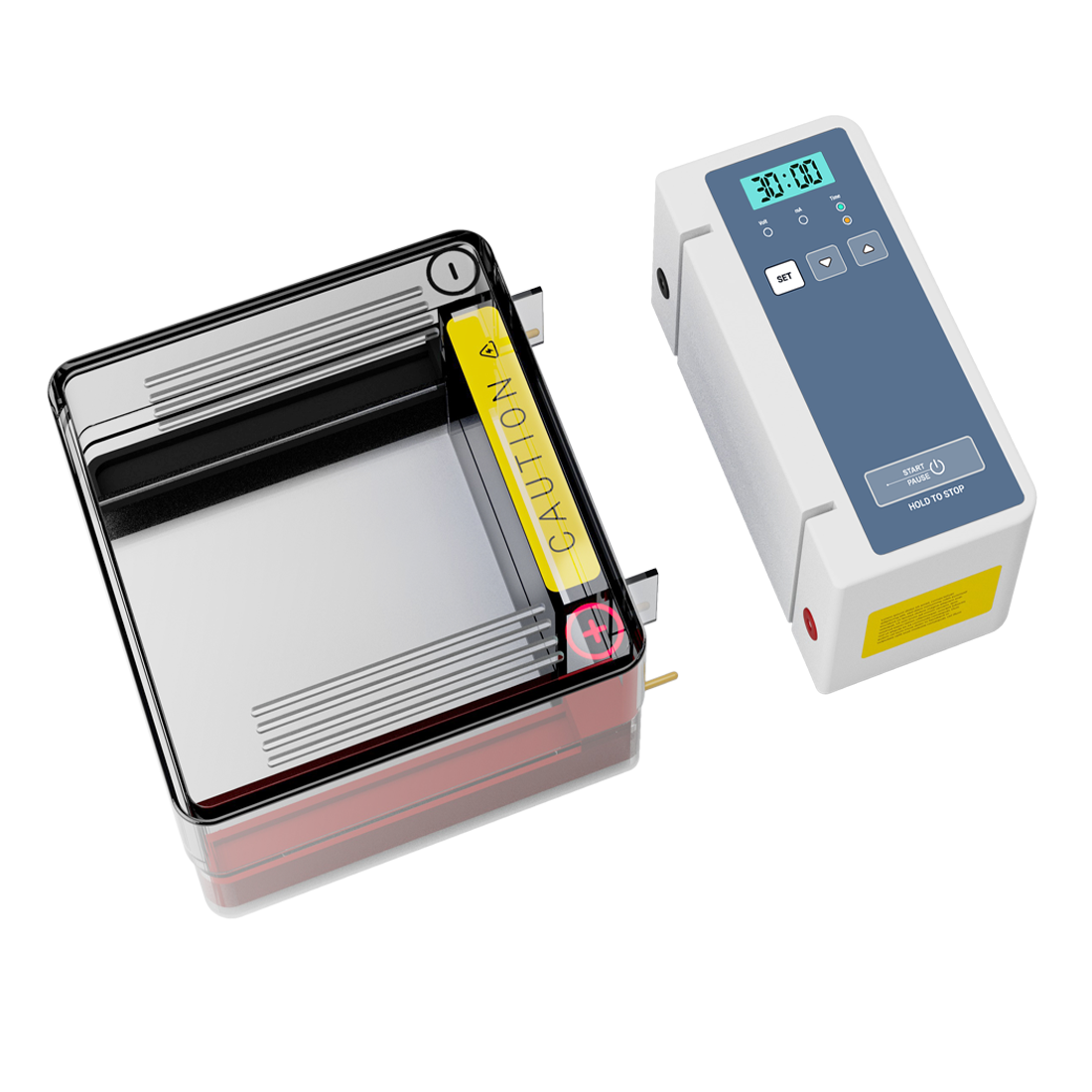

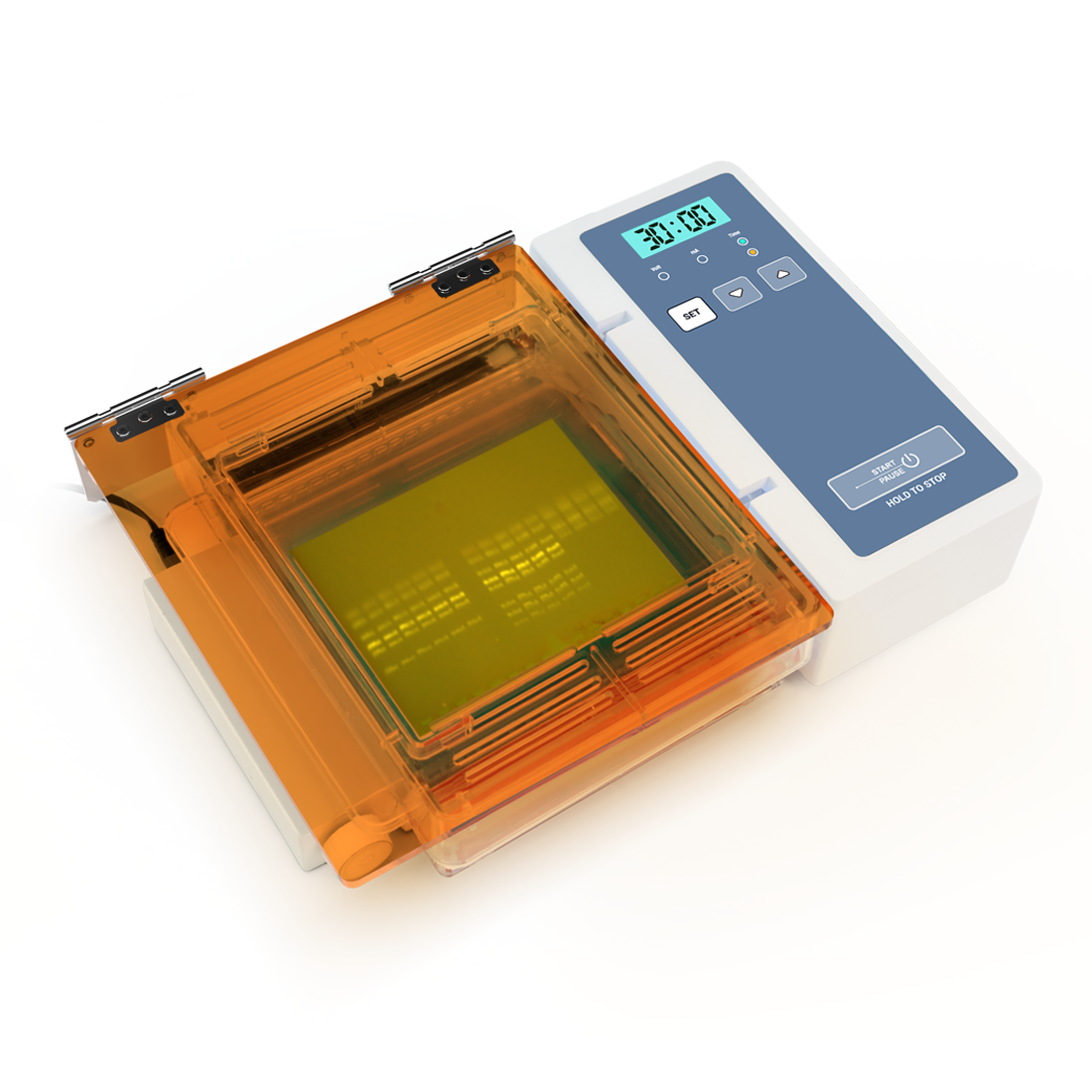

The horizontal gel electrophoresis system is a multifunctional device integrating preparation, operation and power supply. It consists of gel tray, comb, gel tray base, gel tank and digital power supply. The electrophoresis tank, gel tray, and multi-channel comb are all molded for leak-proof performance and long service life. The power supply is directly connected to the electrophoresis tank, no wire connections.
- Mini, compact and portable, the electrophoresis tank and power supply can be separated,making it easy to use and clean;
- Built-in sensor to ensure lid must be tightly closed, then can power on, safe and reliable;

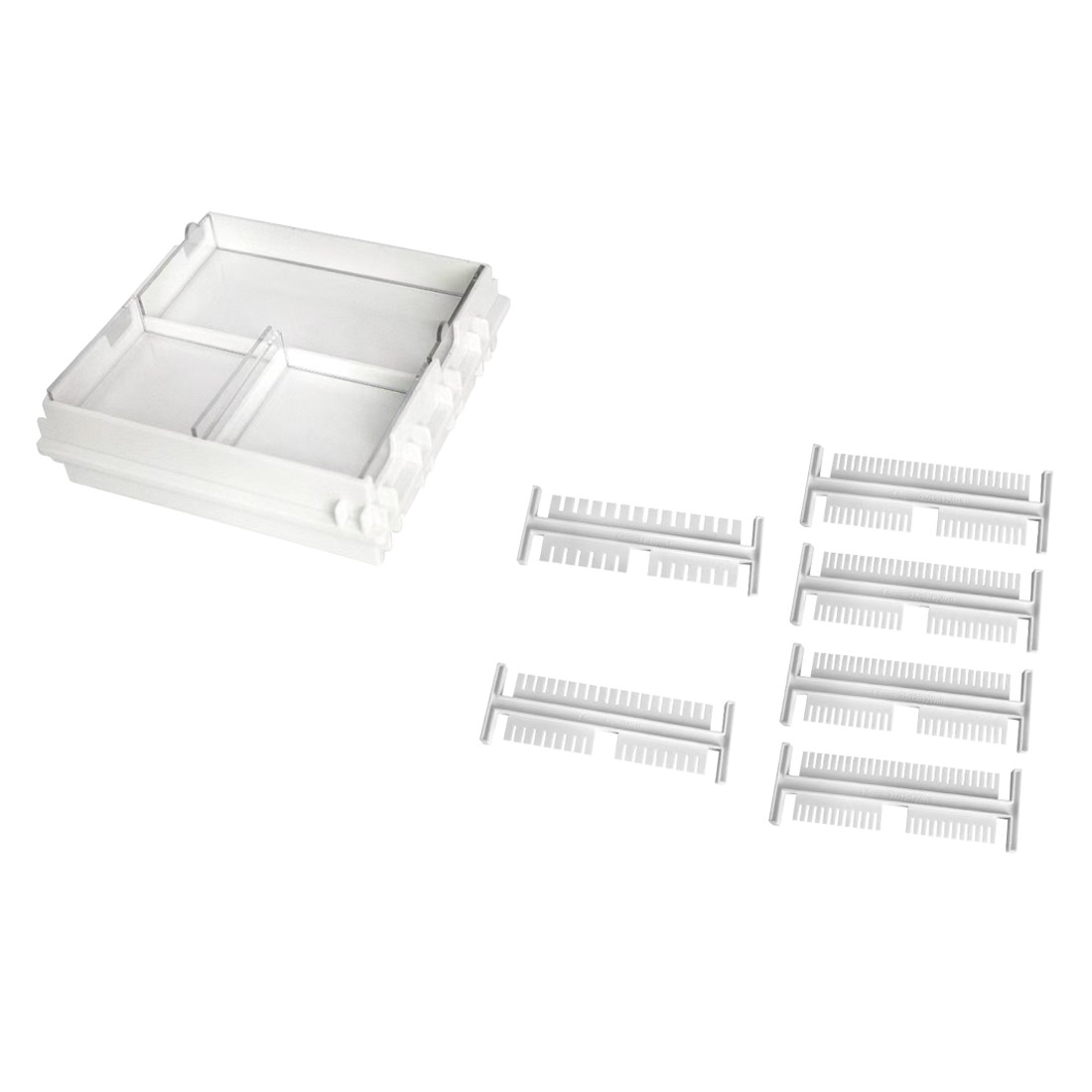

- Provide multi sizes gel trays, suitable for various nucleic acid electrophoresis applications;
- 0~99h59min timing or continuous work, with pause function, alarm reminder when finished;
- Easy and fast gel making, no need for tape and clips;
- High throughput, up to 112 samples per time;
- With memory function of the previous output voltage, current and time settings.
Model | EP150H |
Electrophoresis tank capacity | 500mL |
Gel tank size | 183×164×56mm |
Timing function | 0~99h59min or continuous |
Memory function | Yes |
Output voltage/current | 10~150V/10~400mA |
Gel size | 12.5×12cm 1pcs/12.5×6cm 2pcs/6×6cm 4pcs |
Comb quantity | 4pcs |
Gel tray size | 12.5×12cm 1pcs 12.5×6cm 2pcs 6×6cm 4pcs |
Gel tray base | 13×12.5cm |
Dimension | L245×W190×H63mm |
Weight | 0.83kg |
Voltage/Frequency | 100~240V;50/60Hz |
