The high-throughput tissue grinder is a fast, high-efficiency, multi-sample grinding system. Adopt high-frequency three-dimensional oscillation method, shear and grind different samples through use different grinding beads, thereby effectively improving the efficiency and quality of nucleic acid and protein extraction and purification.
- Adopt high-frequency three-dimensional oscillation method, more complete grinding;
- Multiple samples can be ground within 1 minute, large sample processing capacity;
- Setting the same procedure for the same tissue sample can achieve the same grindingeffect with good repeatability;
- Color touch screen, built-in program controller, can set grinding time, vibration frequency and other parameters;
- Equipped with switch sensor and lock, high safety;
- In a fully enclosed state during the grinding process to avoid cross contamination;
- During the operation of the instrument, the noise is less than 55dB and will not interfere with other experiments or instruments.
Model | MTG24 |
Sample capacity | 24/32/48/64x(0.2~0.5ml/1.5~2ml) 4/12/24x5ml/10x8ml/2x25ml/2x50ml |
Display | 7-inch color touch screen |
Sample size | Adjust according to adapter |
Grind sample | ≤5µm |
Grinding plates | 1 |
Center positioning/ fastening | Yes |
Frequency | 0~70Hz |
Grinding timing | 0~9999s |
Acceleration/deceleration time | 2s |
Grinding ball material | Stainless steel/zirconia |
Grinding ball diameter | 0.1~30mm |
Grinding method | Dry grinding/wet grinding/frozen grinding (Optional: Low temperature adapter) |
Dimension | L272xW375xH640mm |
Weight | 25kg |
Power supply | 100~240V;50/60Hz |

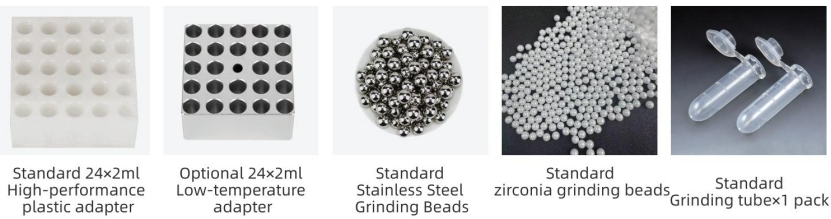

Accessory:
