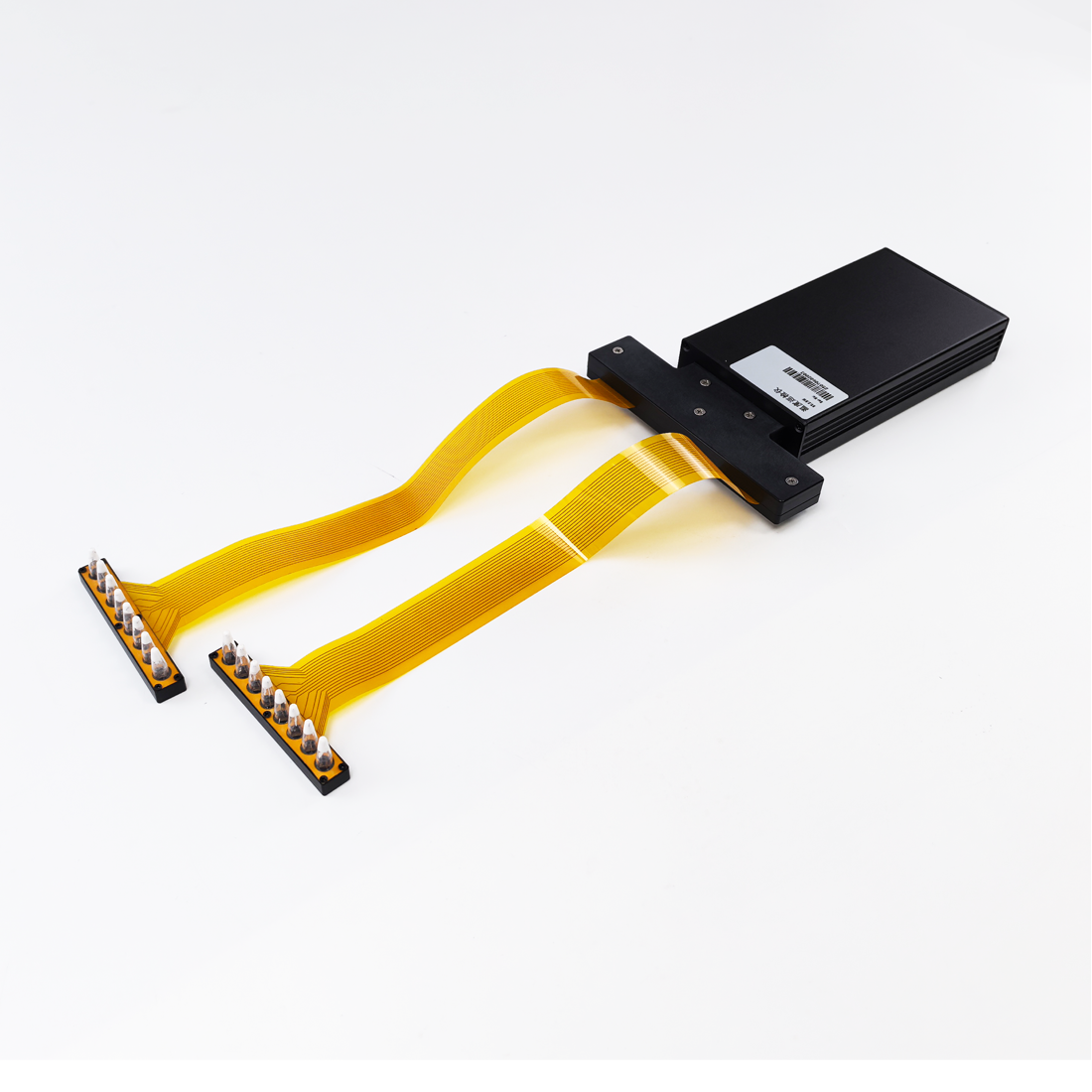

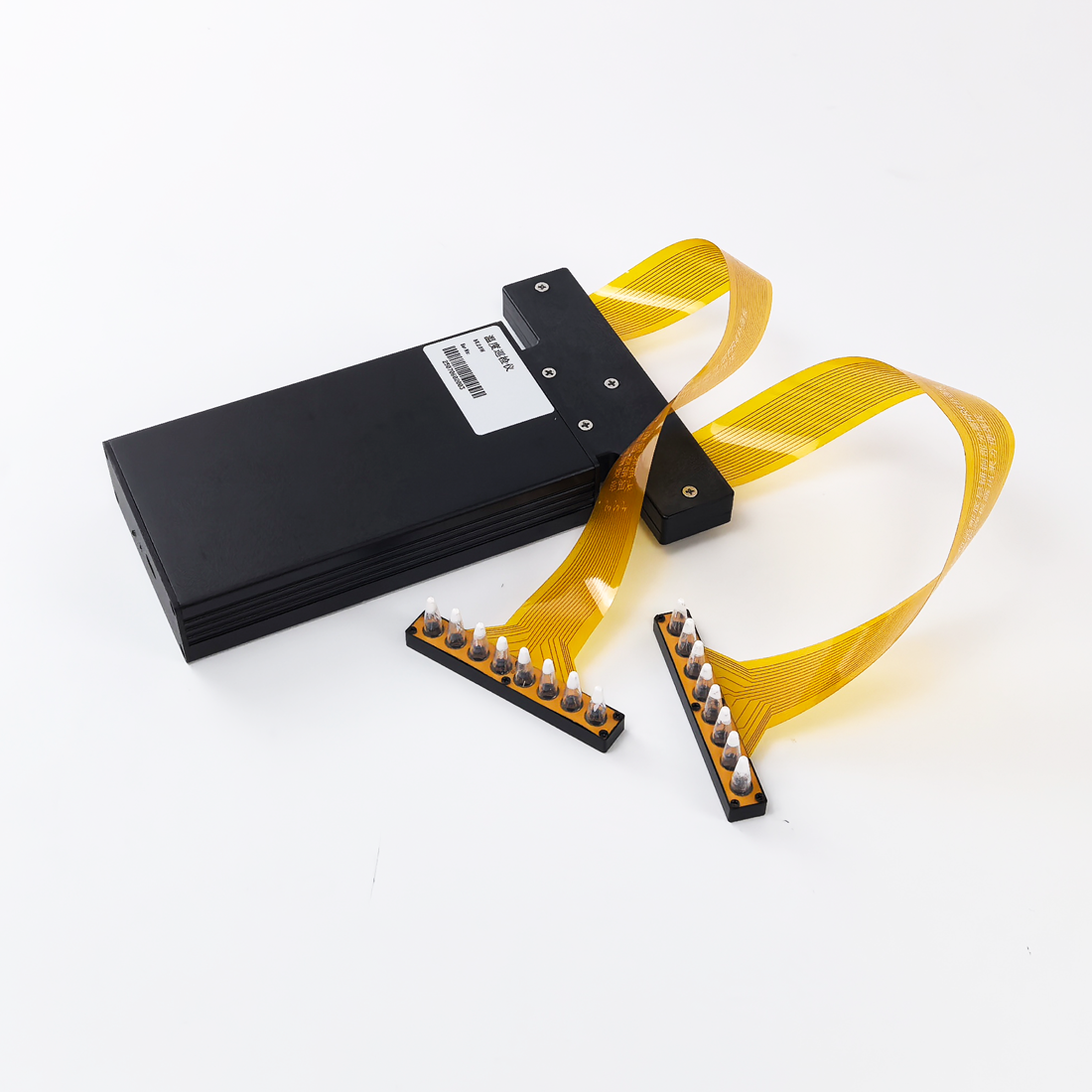

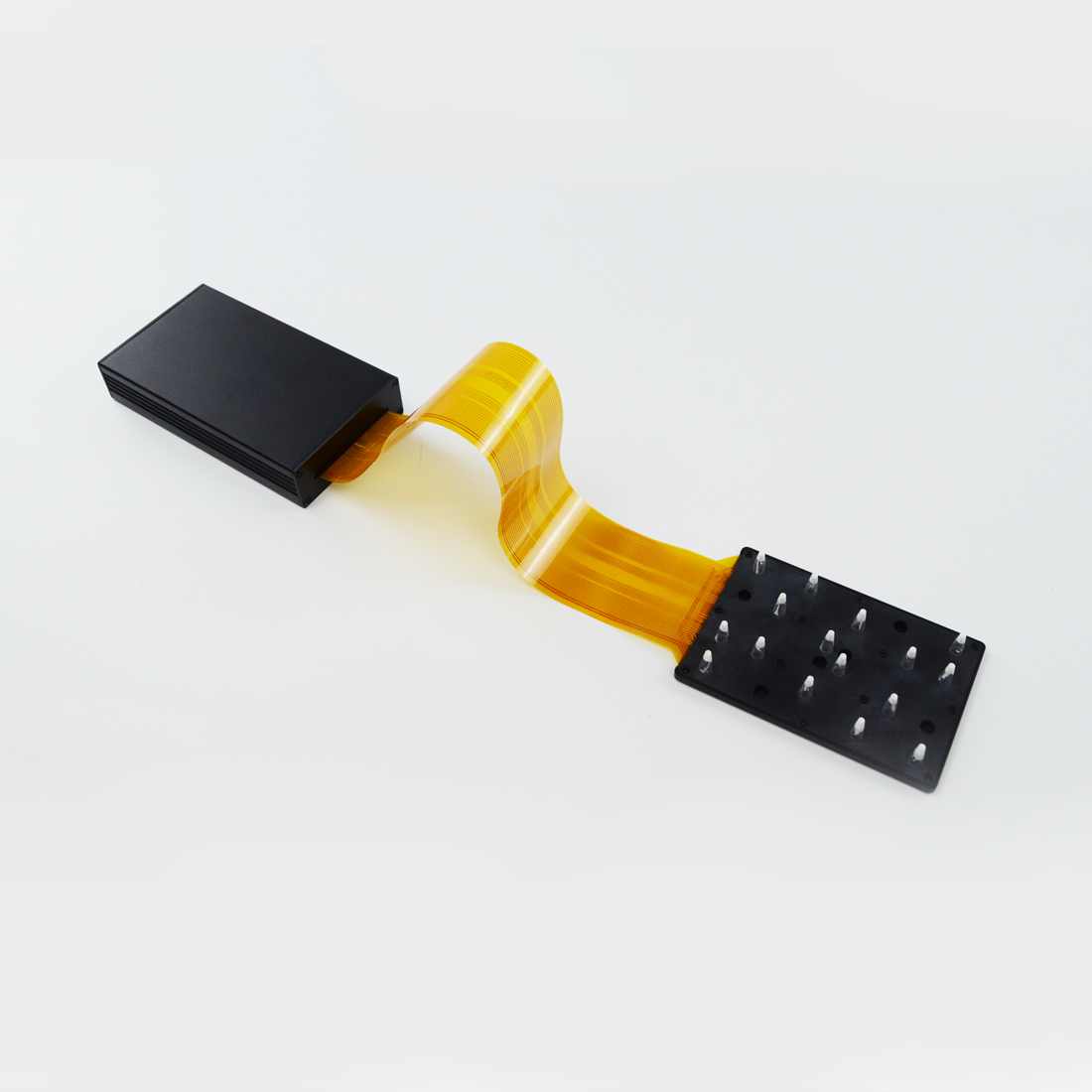

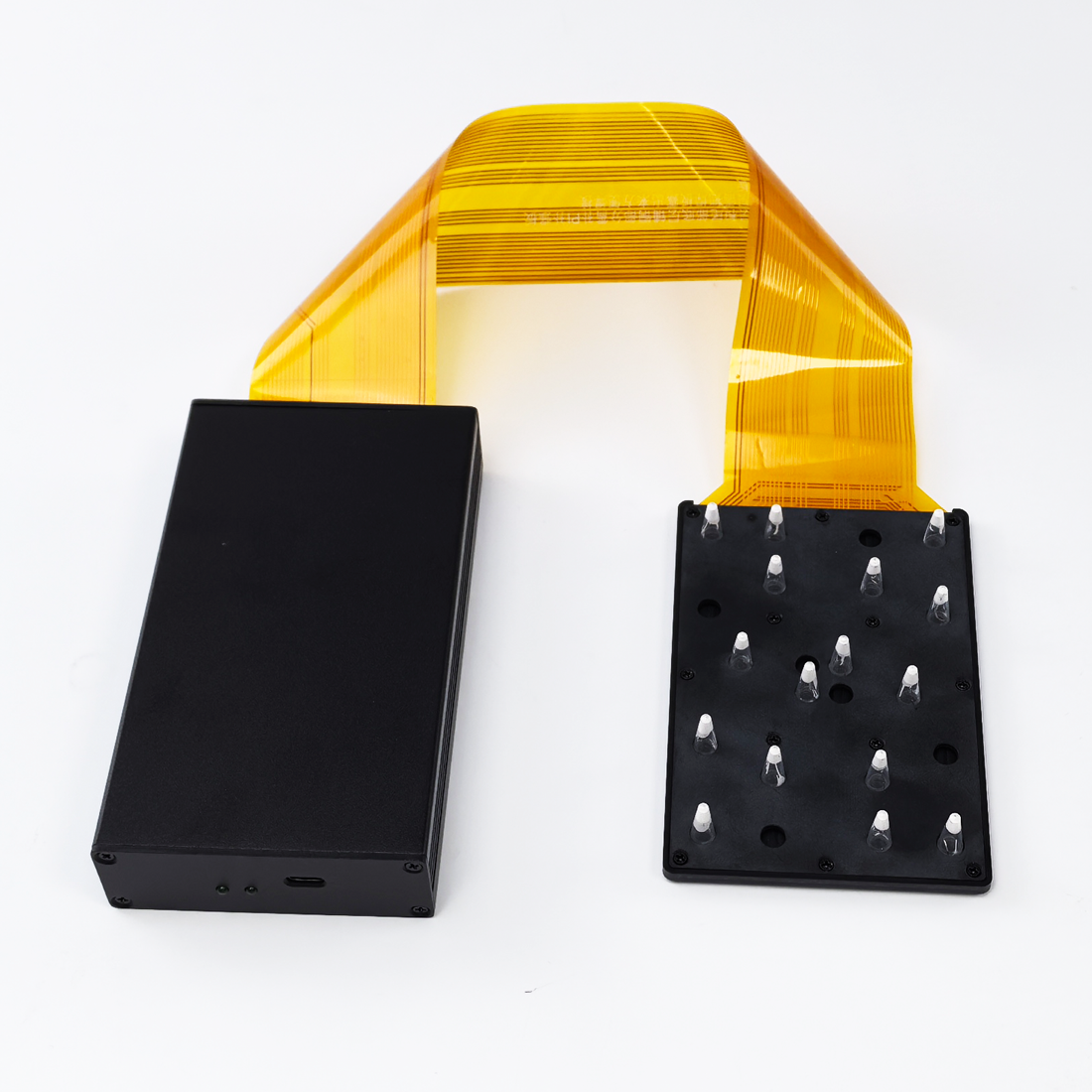

Temperature Verification System TVS96/TVS32/TVS16

A professional PCR instrument temperature calibration and detection system,with integrated PT1000-grade platinum resistance sensor and 0.01°C resolution acquisition system. It features high linearity, millisecond response, and ultra-low temperature drift, ensuring reliable and accurate PCR results. It is an ideal tool for temperature detection and calibration of laboratory PCR instruments.

Enquiry now

Specification

High-precision sensing: 1/3B-class PT1000 platinum resistance thermometer and 0.01℃ resolution acquisition, to ensure accurate, stable, and fast response;

Real-time monitoring of key parameters: Precisely tracking temperature control accuracy, uniformity between wells, long-term stability, and heating&cooling rate;

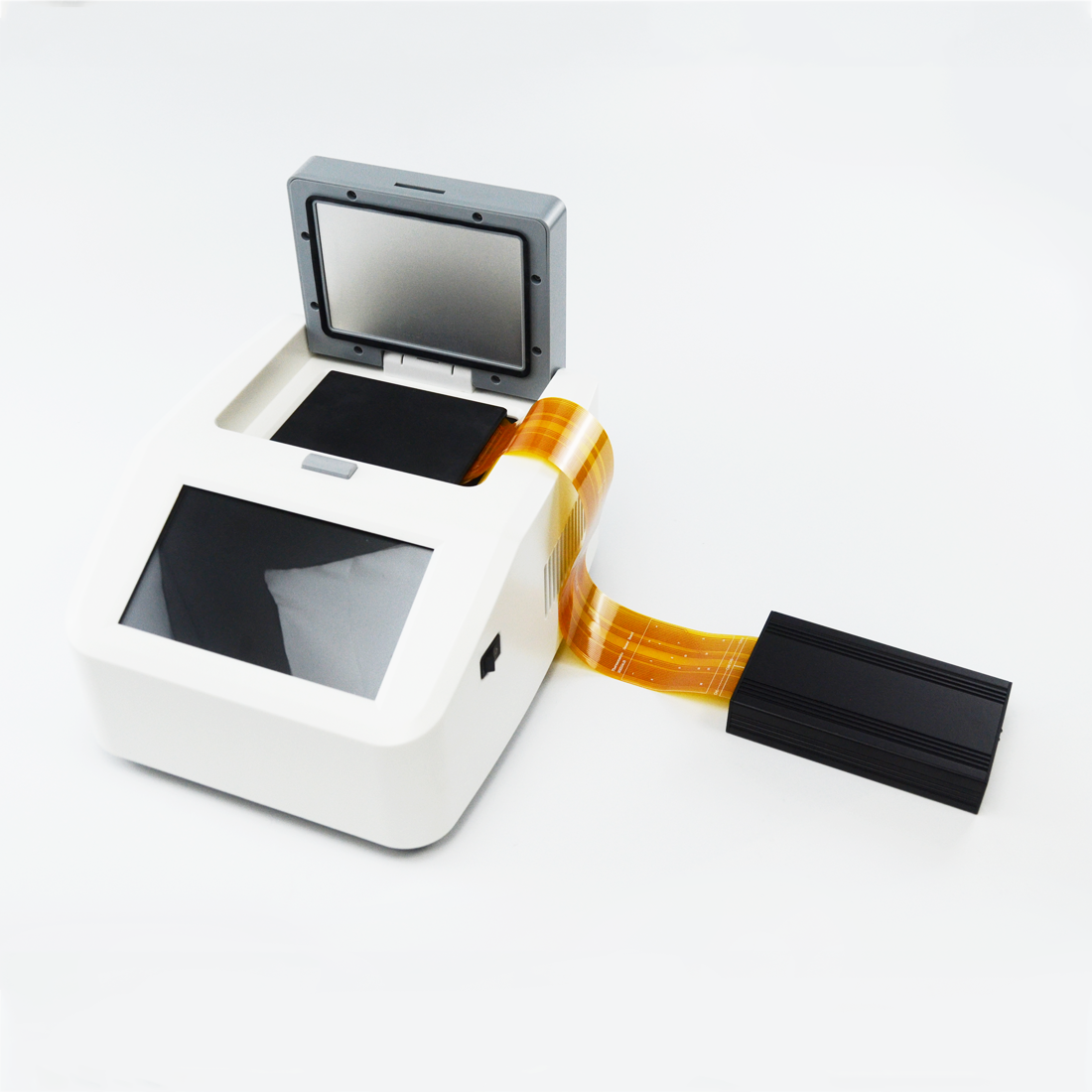

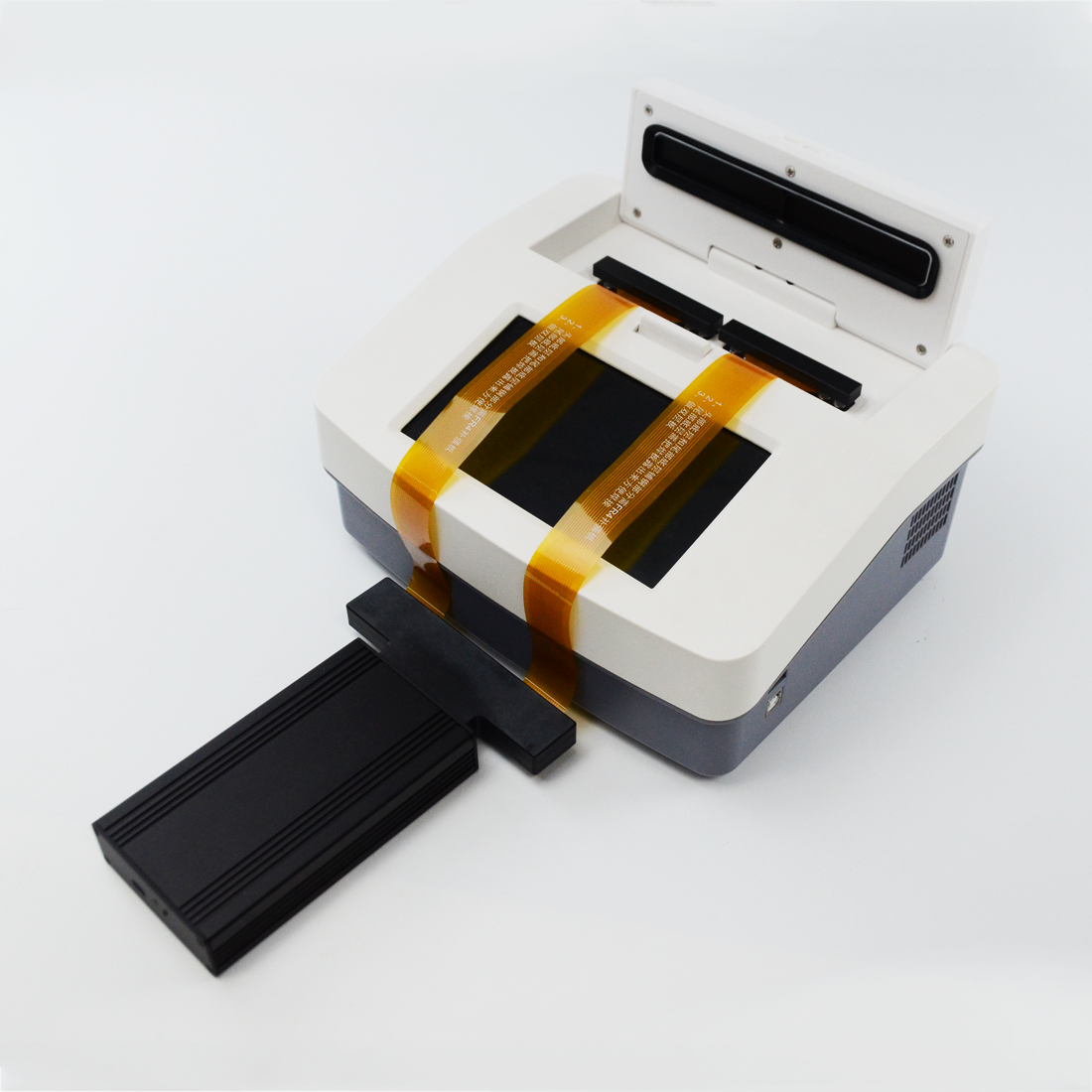

Full compatibility and flexible placement: Supporting mainstream PCR modules such as 96-well, 32-well, and 2x8-well, with customized sensor placement (e.g., edge/center);

High-speed multi-channel simultaneous acquisition: 16 channels/0.5s simultaneous sampling, seamlessly capturing temperature differences between wells (edge effects) and temperature changing rapidly(≤10℃/s);

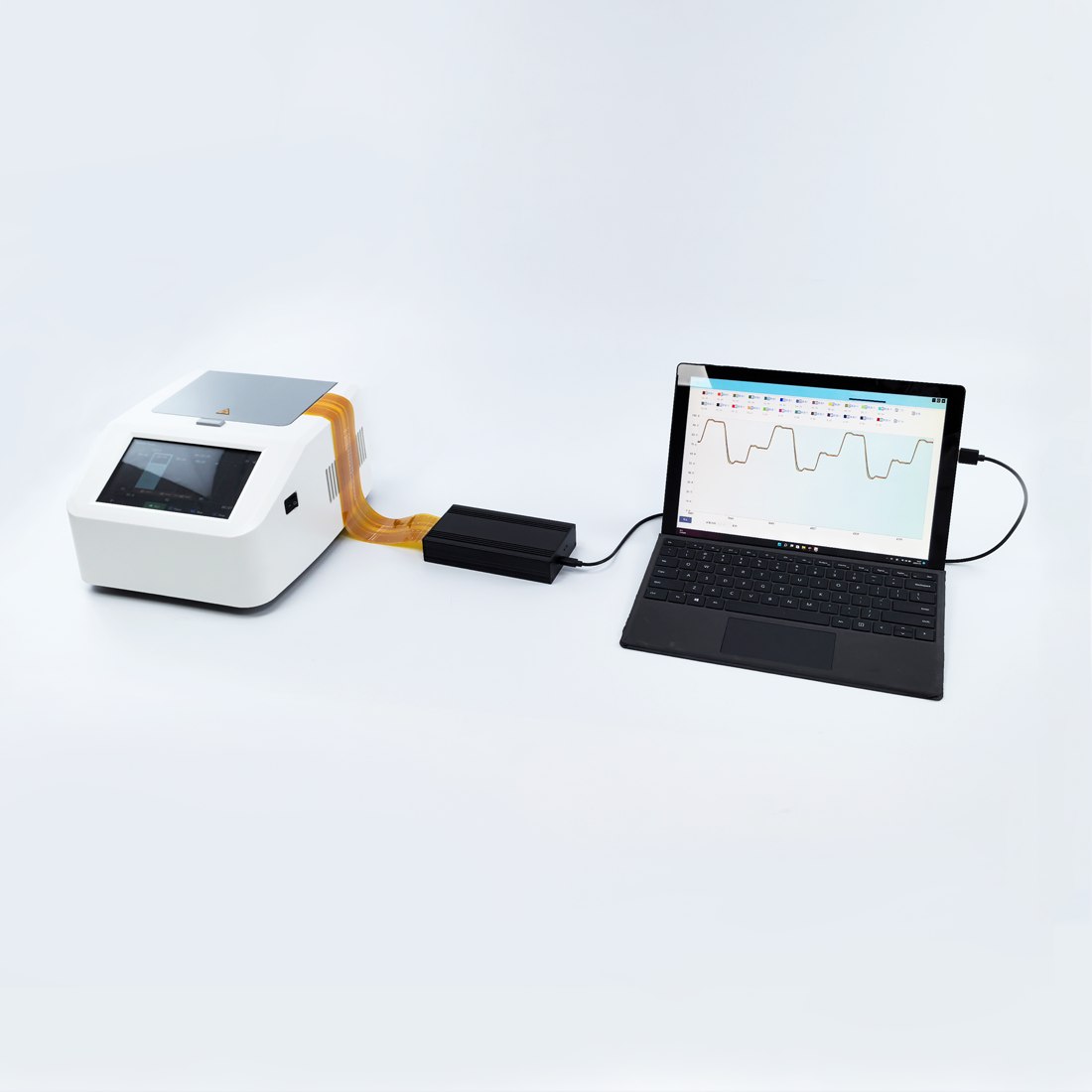

Intelligent and friendly software: Real-time interface, supporting measurement of temperature accuracy/uniformity in stable period and analysis of heating&cooling rate(dynamic curve for selection/tracking/marking, temperature data exporting to Excel for subsequent analysis).

Model	TVS96	TVS32	TVS16
Measuring range	0℃~120℃
Number of sensors	16
Sensor	1/3B class PT1000
Sensor resolution	0.01℃

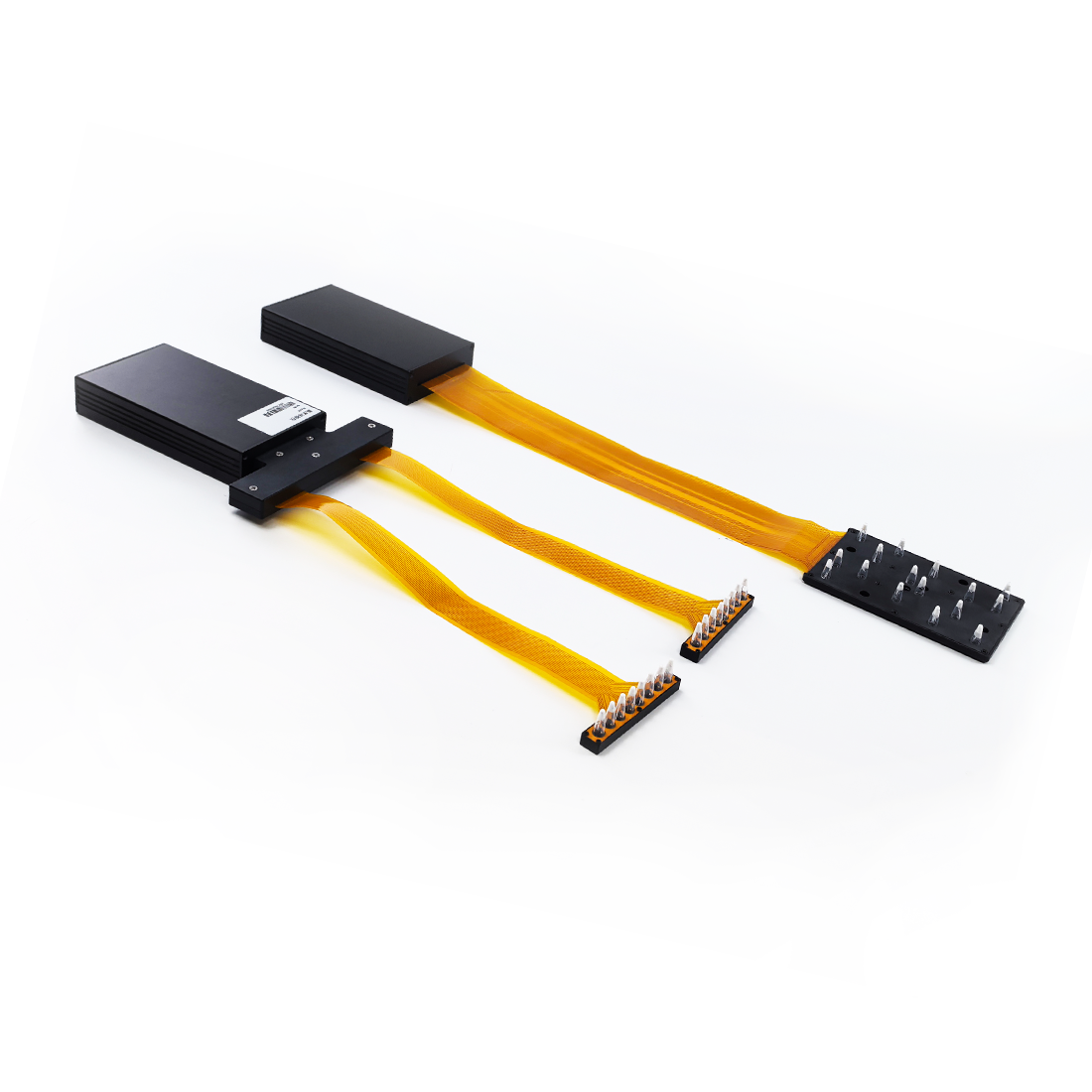

Compatibility	96-well PCR module	32-well PCR module	8/16-well PCR module
Temp. Accuracy	0.1℃
Stability	<0.1℃
Temp. uniformity	<0.2°C
Linearity	R2>0.9999
Temp. acquisition speed	16 channels/0.5S simultaneous acquisition
Software features	Real-time curve; Temp. value display; Temp. Max./ min. value mark; Data EXCEL export
Relative humidity	10%~90%(non-condensing)
Ambient temp.	10℃~35℃
Diameter	L148×W83×H29mm
Weight	0.25kg
Power Supply	USB Power(DC5V/1A;5W)
