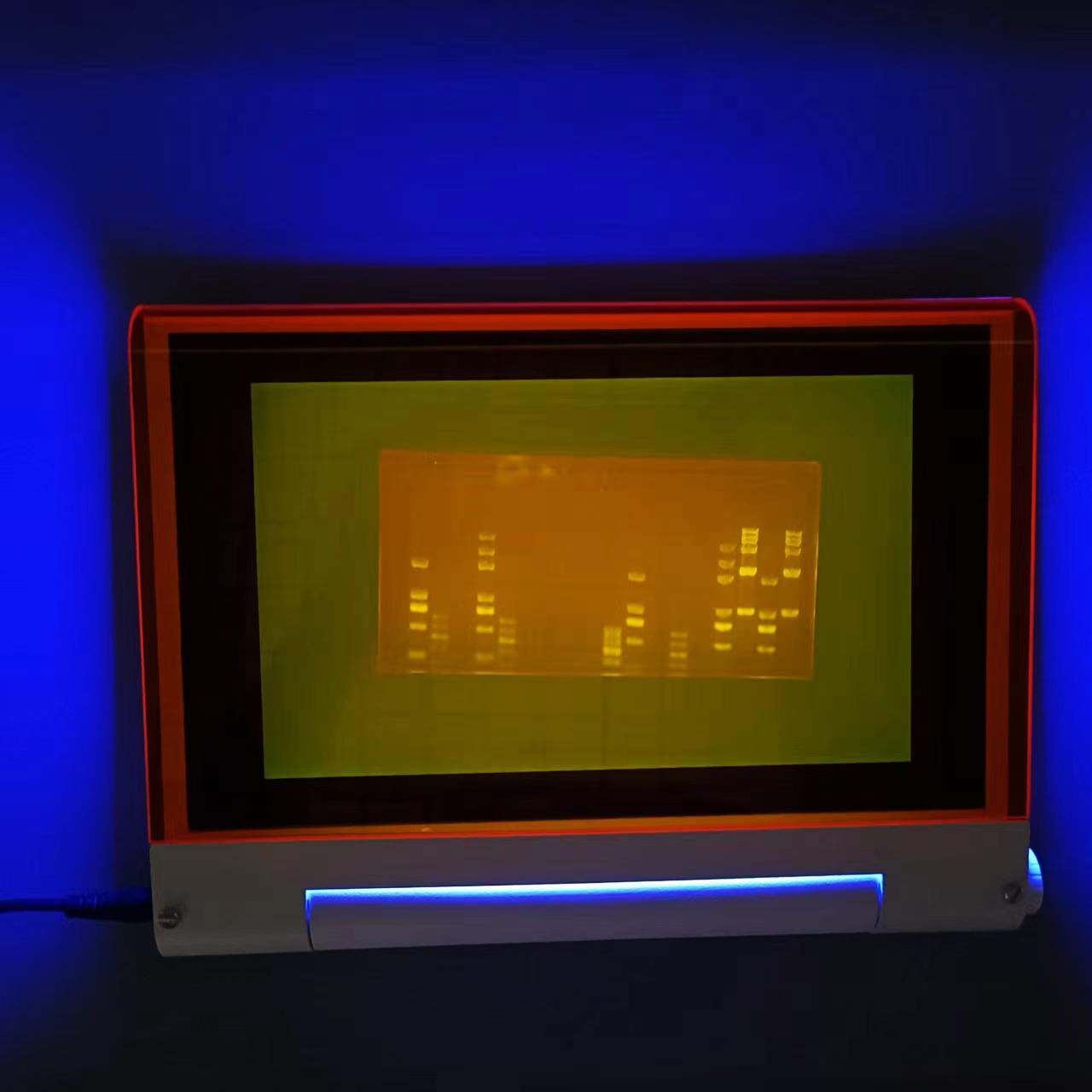

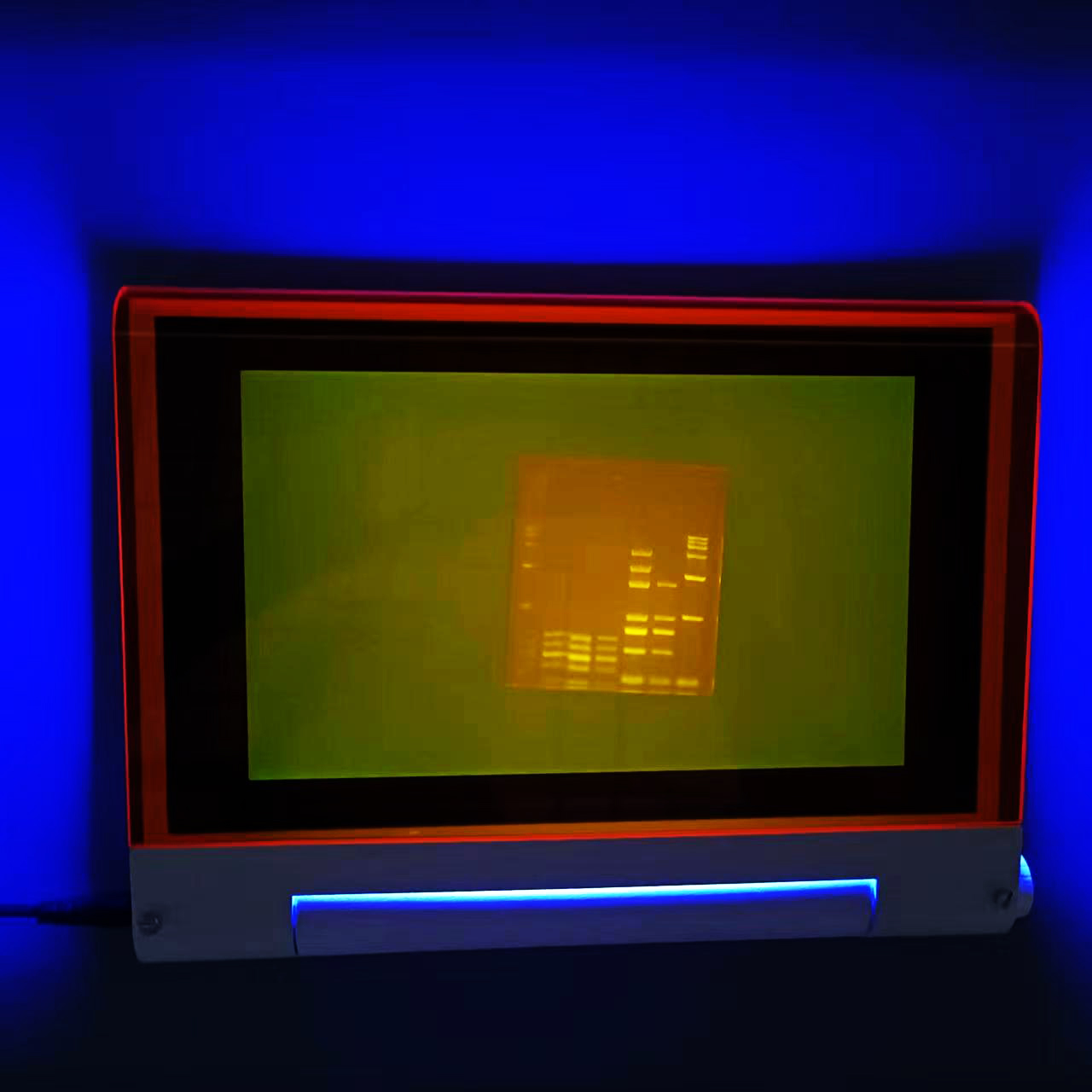

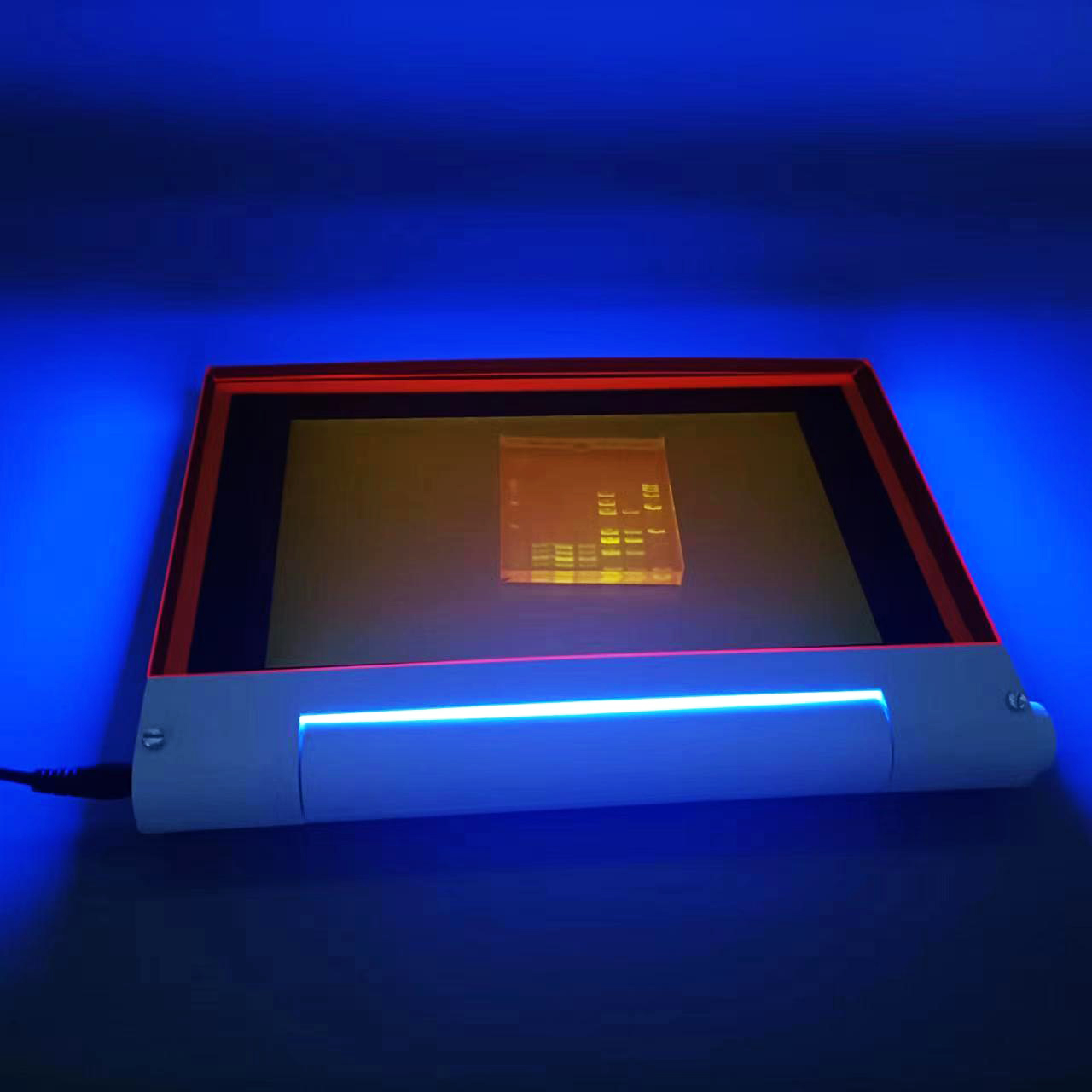

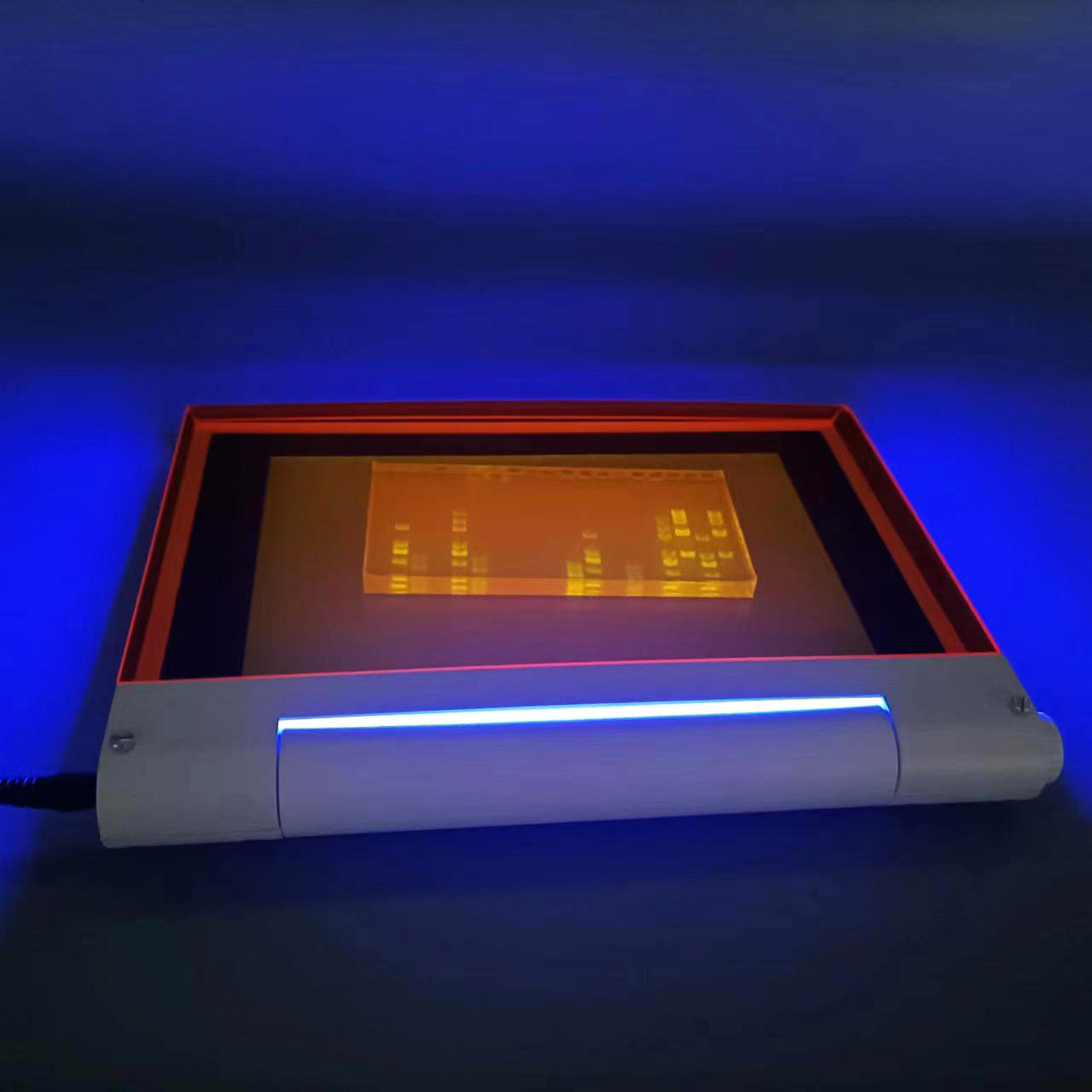

The blue LED transilluminator is a high-quality blue light transmission device, which is widely used for the observation of nucleic acid and protein gel staining. Blue LED light source, with amber filter cover, and use with nucleic acid-safe dyes with excitation wavelength of 450~495nm, can achieve perfect gel viewing and cutting effects without protective light filtering goggles.
- Unique bottom light-emitting, evenly excite gels, high brightness, low background interference;
- Precise sealing structure effectively reduces the possibility of gel contamination;
- High-quality blue LD light source, low power consumption, more than 50,000h service life;
- Blue LED has no harmful to human body or gel samples;
- Include a fold-able darkroom for gel bands photography and precision gel cutting knife;
- Light intensity can be adjusted and memorized, no need to repeatedly setting;

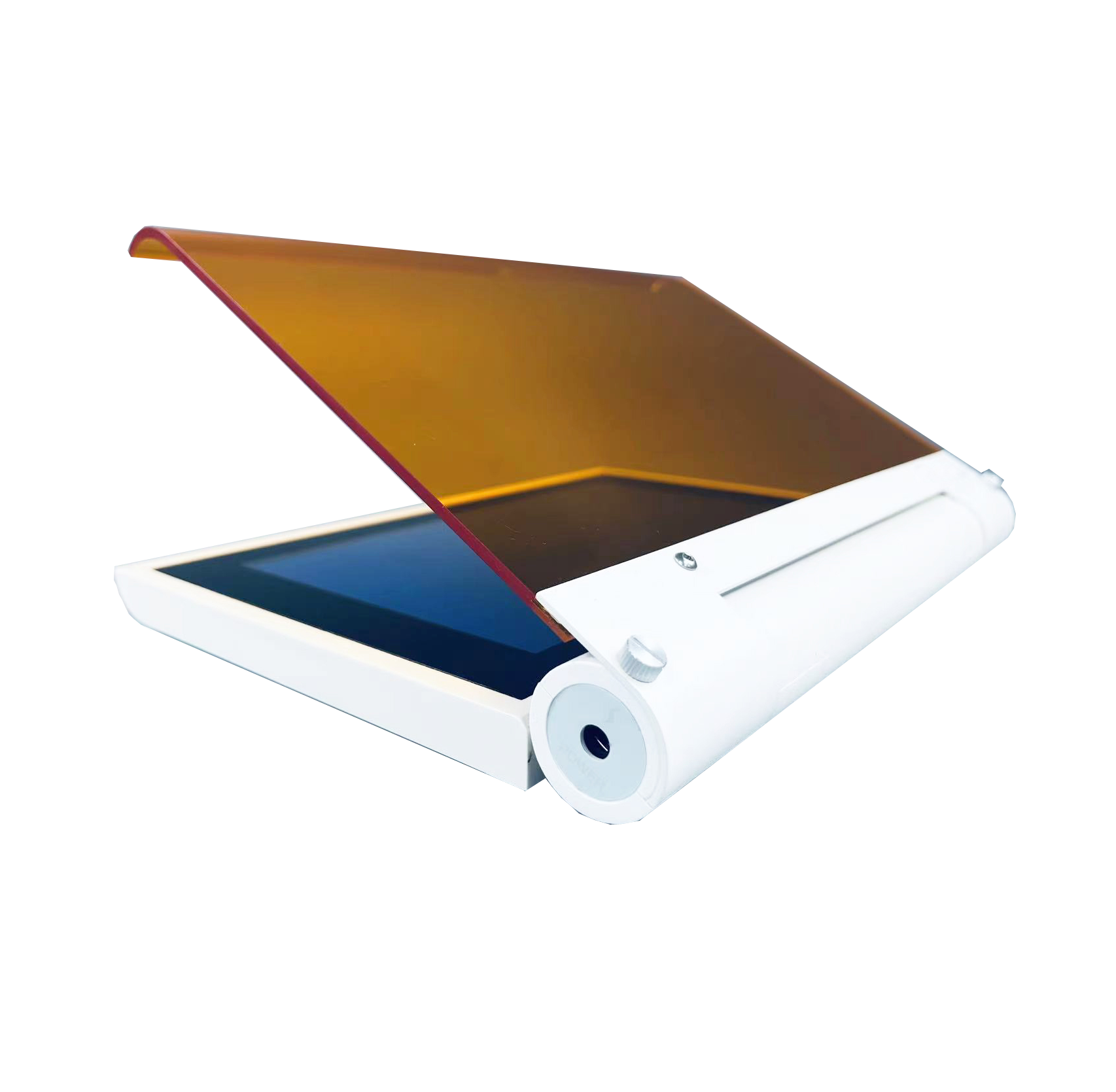

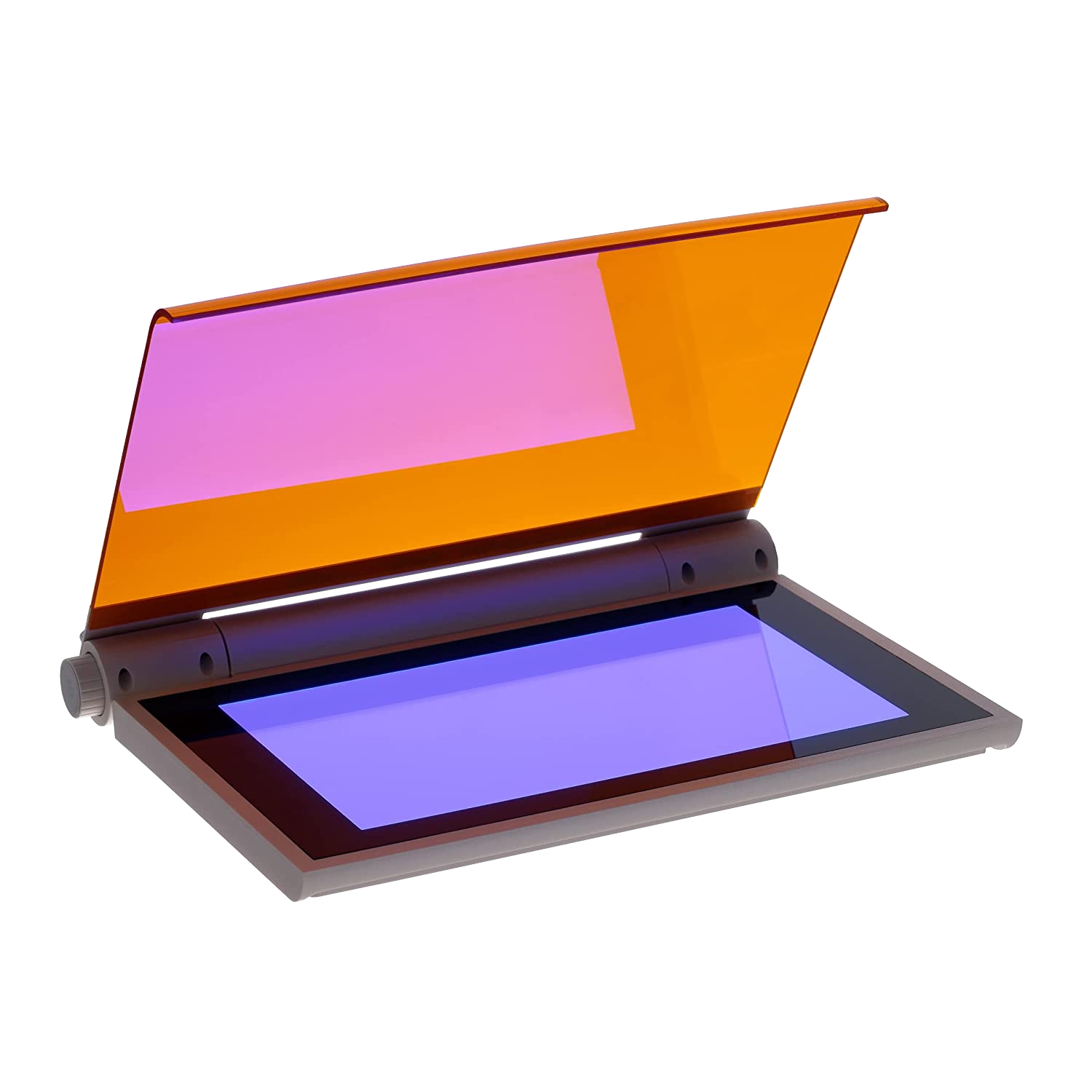

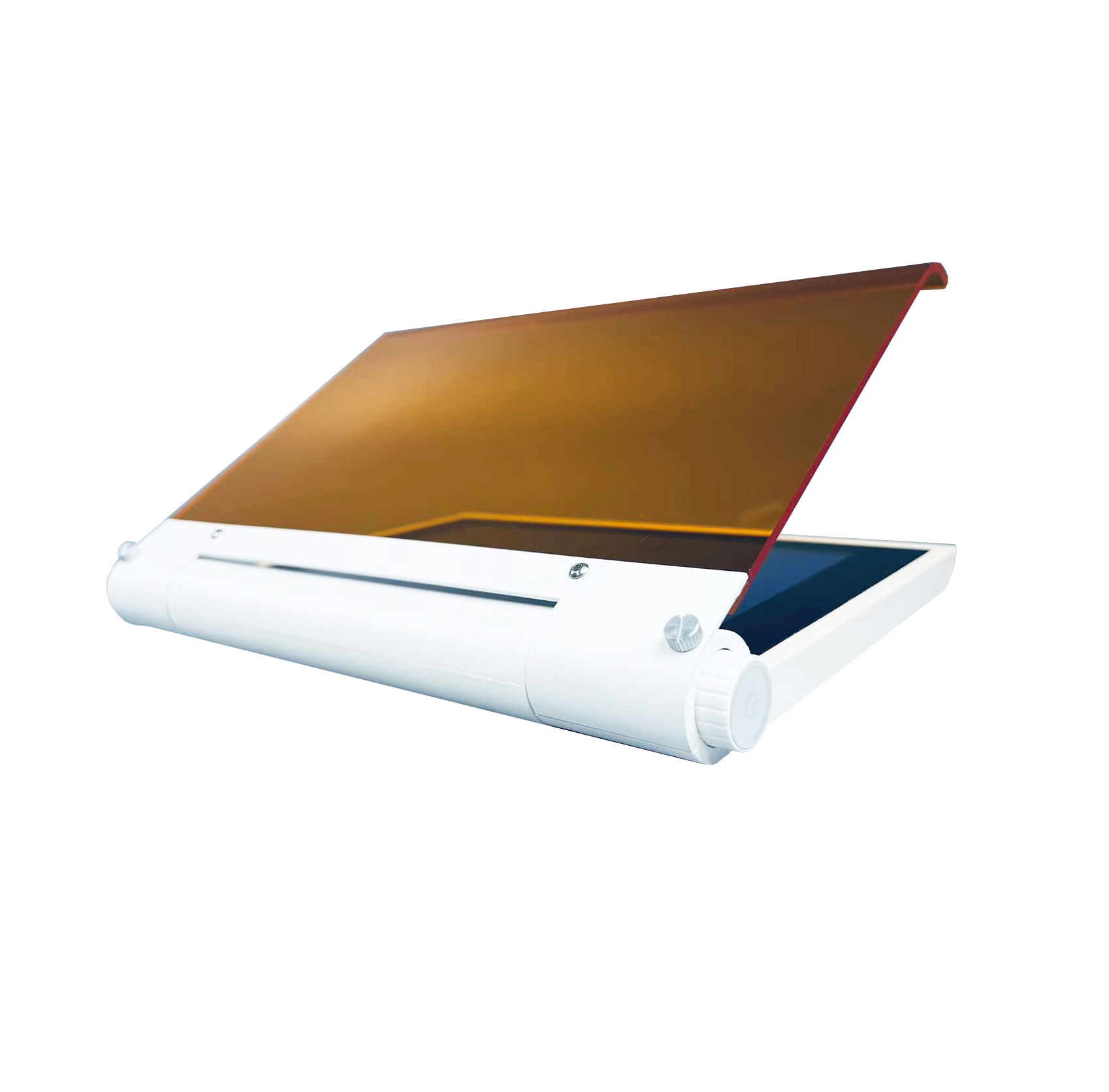

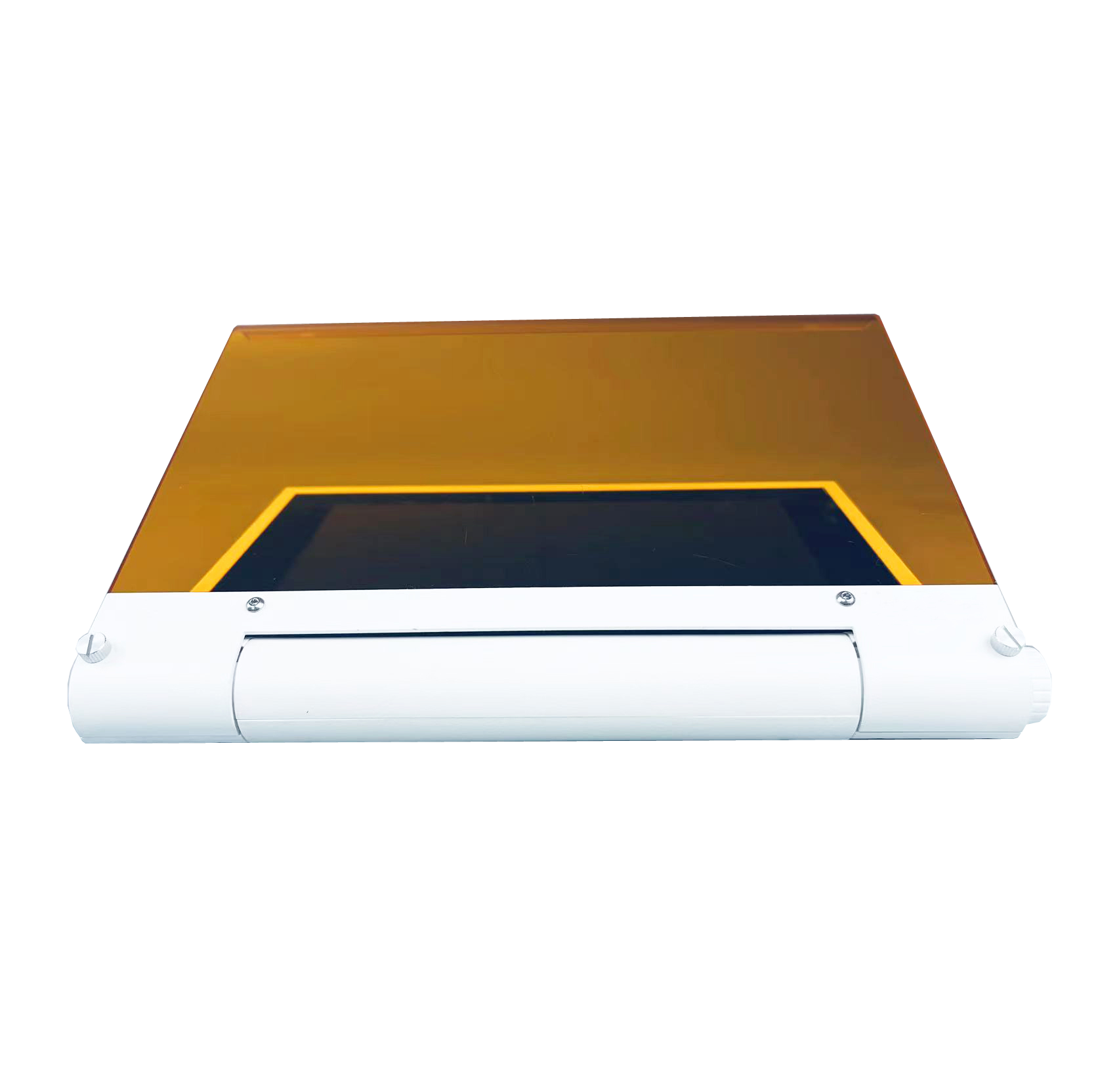

- Amber cover filter can be rotated at multiple angles to facilitate observation and gel cutting.
Model | TI470 |
Observation area | L210xW120mm |
Power adapter | 12V 1A |
LED source | Bottom built-in LED light module |
LED lifetime | >50,000h |
Max emission wavelength | 470nm |
Auto shutdown time | 5min |
Dimension | L265xW195xH30mm |
Weight | 1kg |
Power supply | 100~240V;50/60Hz |
