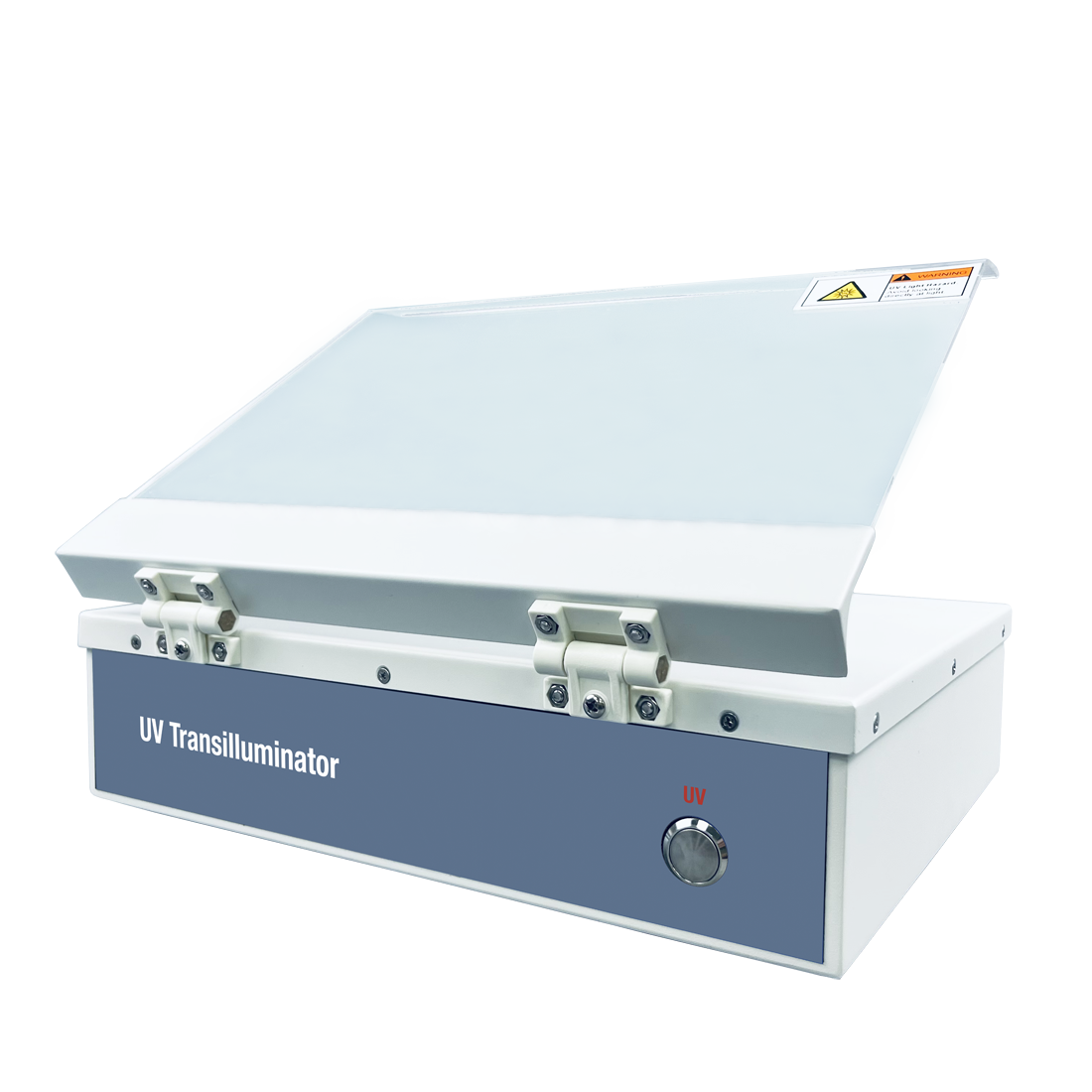

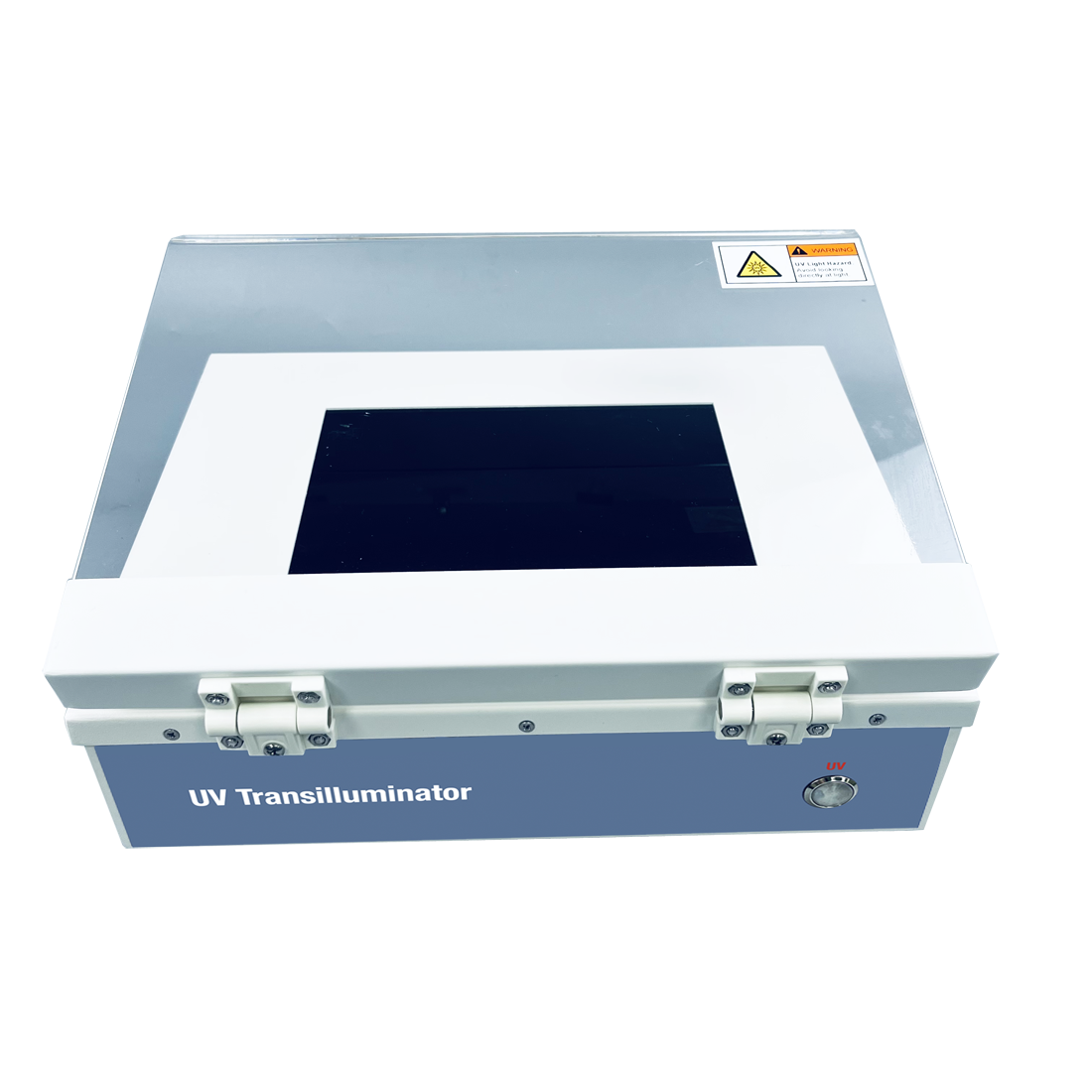

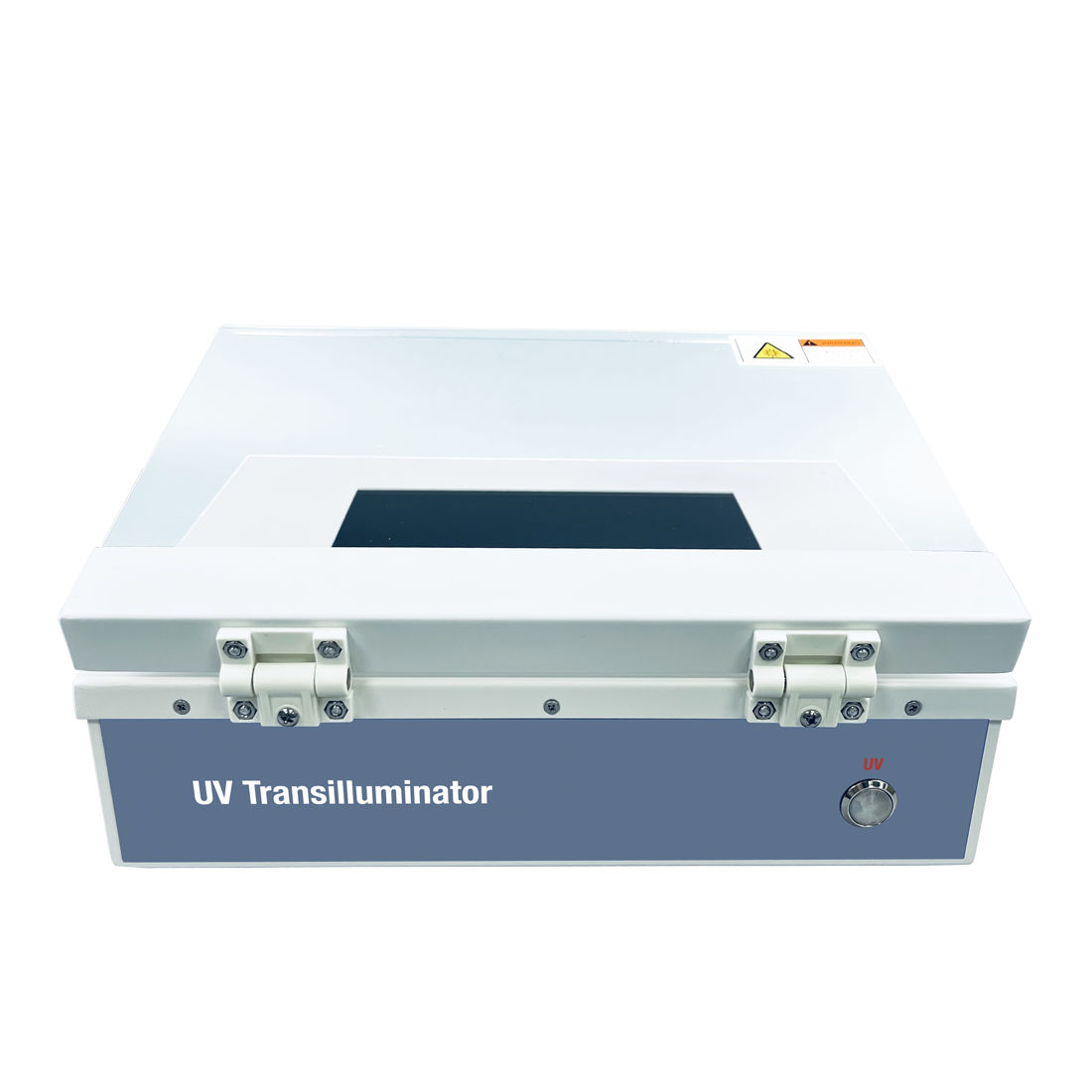

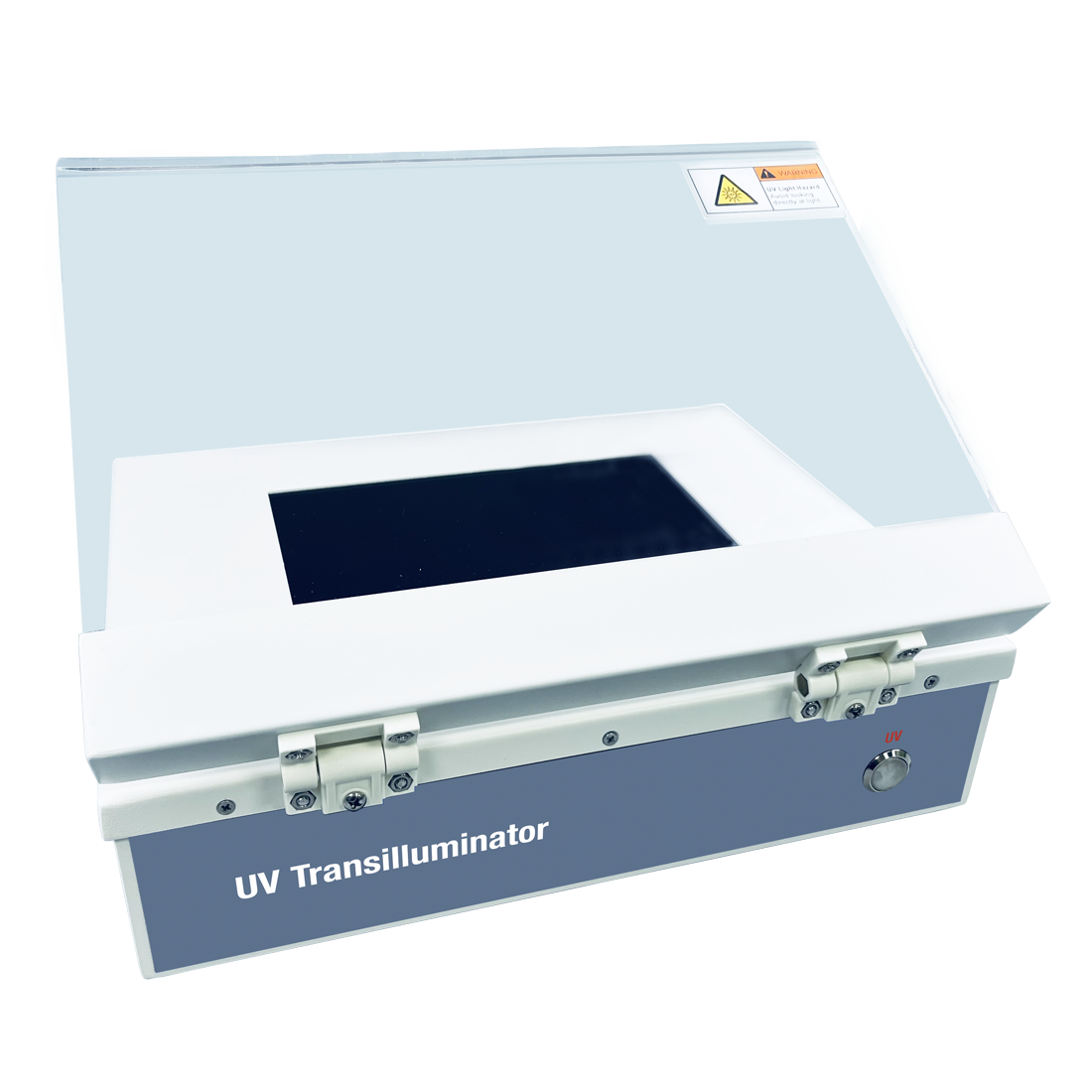

Specification

-Special UV filter glass, good permeability, high sensitivity, enhance the ability to capture weak band signals;

-High-quality ultraviolet tube, reasonable structure design, strong and uniform ultraviolet light, excellent fluorescent effect;

-Standard 302nm (optional 254nm or 354nm) UV wavelength lamp;

-Precise sealing structure effectively reduces the possibility of gel contamination and internal damage caused by leakage;

-The UV protection plate can be adjusted and positioned arbitrarily within 0°-180° to ensure the best UV protection;

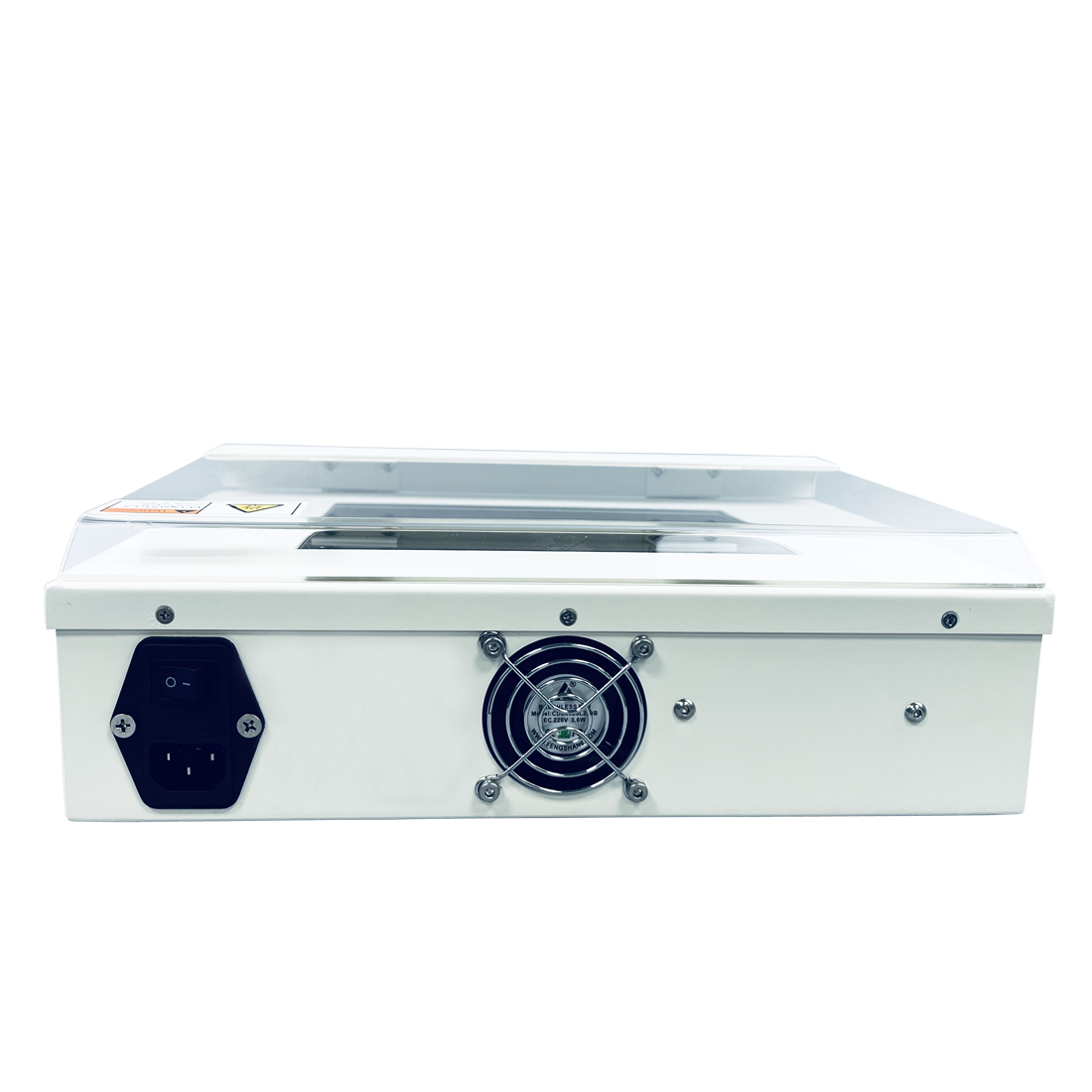

-Comes with a fan cooling device to extend the service life of the machine.


Model

TI302

Observation area

L195mm×W145mm

Power

8W×6

UV lamp lifetime

1,500h

Transmission wavelength

302nm (standard)

Dimension

L335×W265×H120mm

Weight

5kg

Voltage/Frequency

110V/220V;50/60Hz
